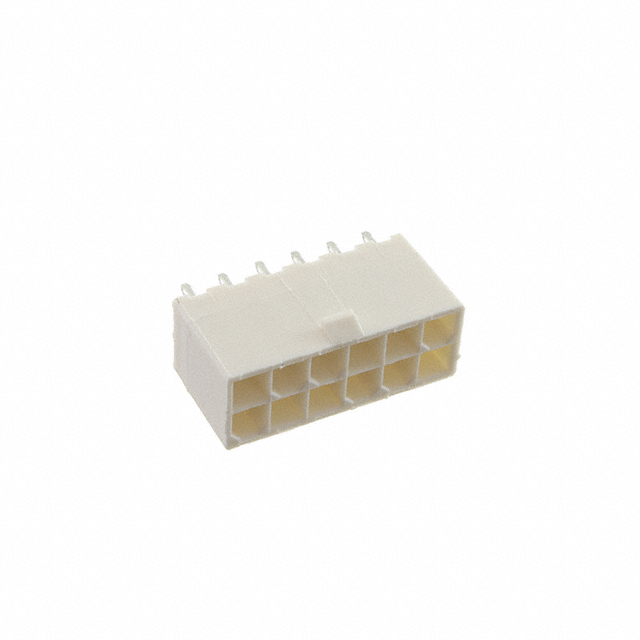

1-2825272-2
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：12P VERT HDR VAL-U-LOK HCS GW
- Series：VAL-U-LOK
- Mfr：TE Connectivity AMP Connectors
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA), Nylon
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-2
- Insulation Color：White
- Current Rating (Amps)：13A
- Voltage Rating：600V
