1-292207-5
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

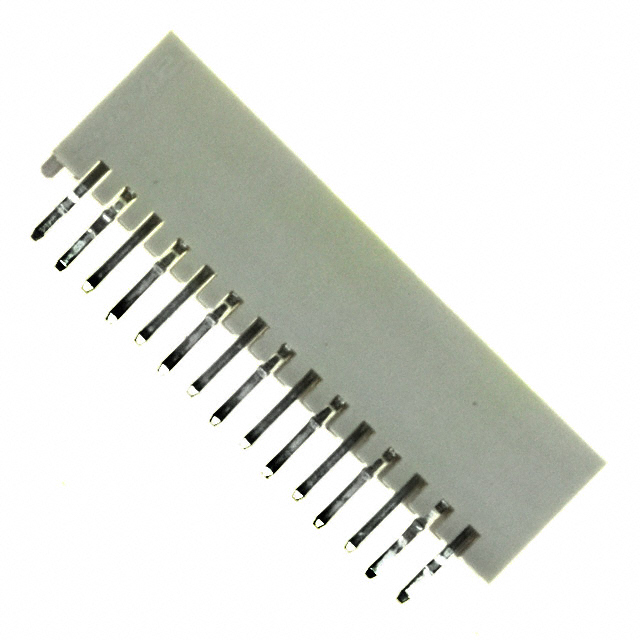

- Description：CONN HEADER VERT 15POS 1.5MM
- Series：Mini CT
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.059" (1.50mm)
- Number of Positions：15
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：0.094" (2.40mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.307" (7.80mm)
- Insulation Height：0.272" (6.91mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA), Nylon, Glass Filled
- Features：Board Guide
- Operating Temperature：-30°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Gray
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：50VAC
