1-316132-3
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

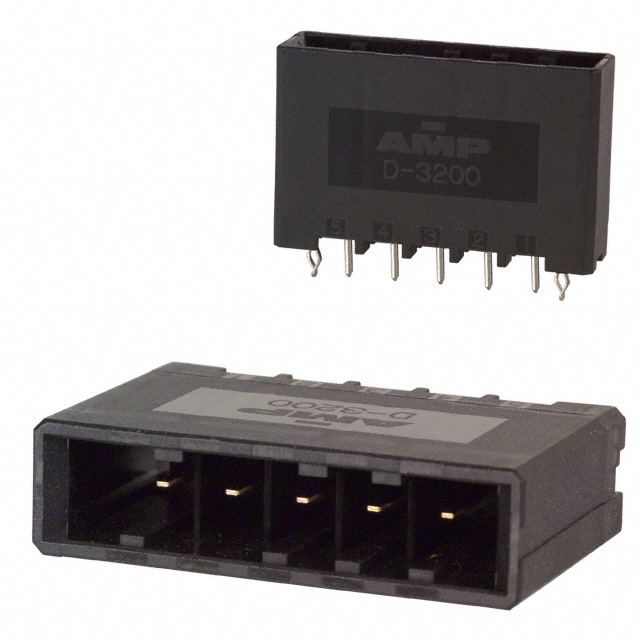

- Description：CONN HEADER VERT 5POS 5.08MM
- Series：Dynamic D-3200
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Connector Type：Header
- Contact Type：Tab
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：0.150" (3.81mm)
- Overall Contact Length：-
- Insulation Height：0.850" (21.59mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Gold or PdNi +Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic, Polyester, Glass Filled
- Features：Board Lock
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：600V
