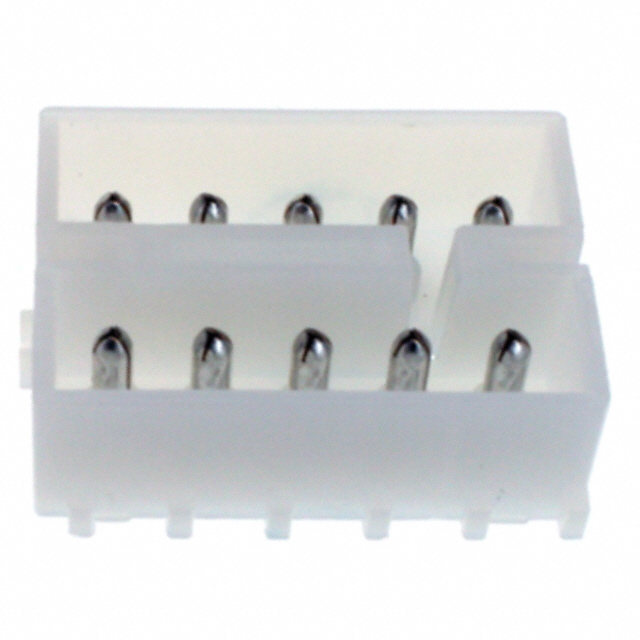

1-380991-0
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：CONN HEADER VERT 10POS
- Series：Commercial MATE-N-LOK
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.195" (4.95mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.360" (9.14mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：0.181" (4.60mm)
- Contact Length - Post：0.150" (3.81mm)
- Overall Contact Length：-
- Insulation Height：0.375" (9.53mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA), Nylon
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Natural
- Current Rating (Amps)：-
- Voltage Rating：-
