1-440052-4
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

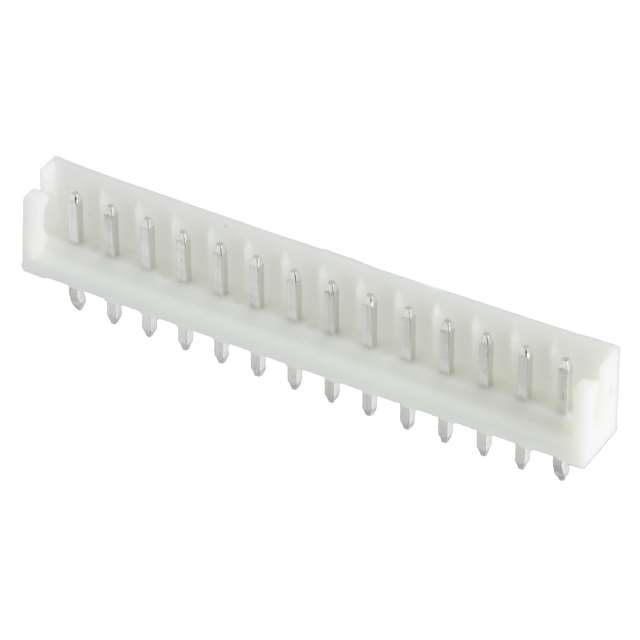

- Description：CONN HEADER VERT 14POS 2.5MM
- Series：High Performance Interconnect (HPI)
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk,Box
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.098" (2.50mm)
- Number of Positions：14
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 3 Wall
- Mounting Type：Through Hole
- Termination：Press-Fit, Solder
- Fastening Type：Friction Lock
- Contact Length - Mating：0.136" (3.45mm)
- Contact Length - Post：0.134" (3.40mm)
- Overall Contact Length：0.335" (8.51mm)
- Insulation Height：0.236" (6.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-25°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：3A
- Voltage Rating：250V
