Product Detailed Parameters

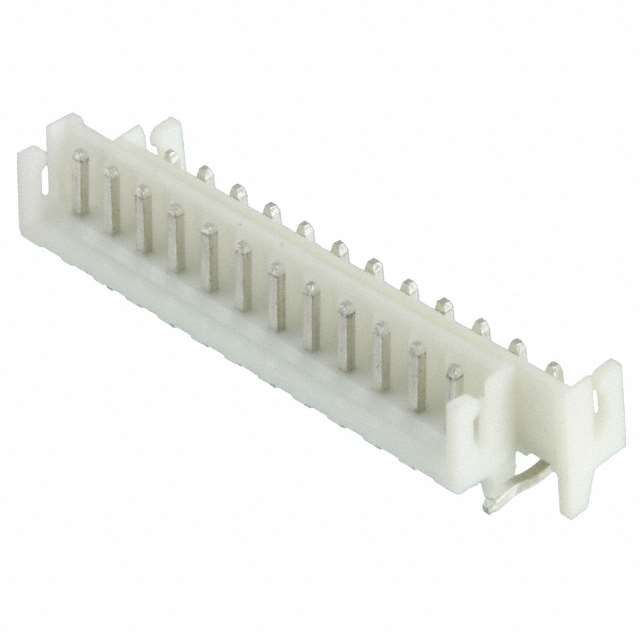

- Description：CONN HEADER R/A 12POS 2.5MM
- Series：High Performance Interconnect (HPI)
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.098" (2.50mm)
- Number of Positions：12
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 3 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Press-Fit, Solder
- Fastening Type：Friction Lock
- Contact Length - Mating：0.157" (4.00mm)
- Contact Length - Post：0.134" (3.40mm)
- Overall Contact Length：-
- Insulation Height：0.165" (4.20mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-25°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：3A
- Voltage Rating：250V
