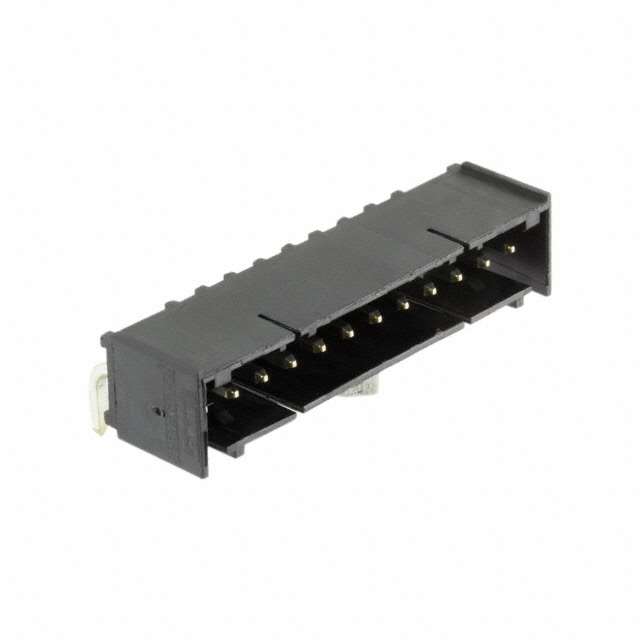

1-647126-2

1-647126-2

Description：CONN HEADER R/A 12POS 3.96MM
Series：MTA-156
Mfr：TE Connectivity AMP Connectors
Package：Bag

SKU:019eb17798ce Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 12POS 3.96MM
Series：MTA-156
Mfr：TE Connectivity AMP Connectors
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.156" (3.96mm)
Number of Positions：12
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：0.300" (7.62mm)
Contact Length - Post：0.125" (3.18mm)
Overall Contact Length：-
Insulation Height：0.455" (11.56mm)
Contact Shape：Square
Contact Finish - Mating：Tin-Lead
Contact Finish Thickness - Mating：150.0µin (3.81µm)
Contact Finish - Post：Tin-Lead
Contact Material：Copper Alloy
Insulation Material：Thermoplastic, Glass Filled
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC
