1-647676-2
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

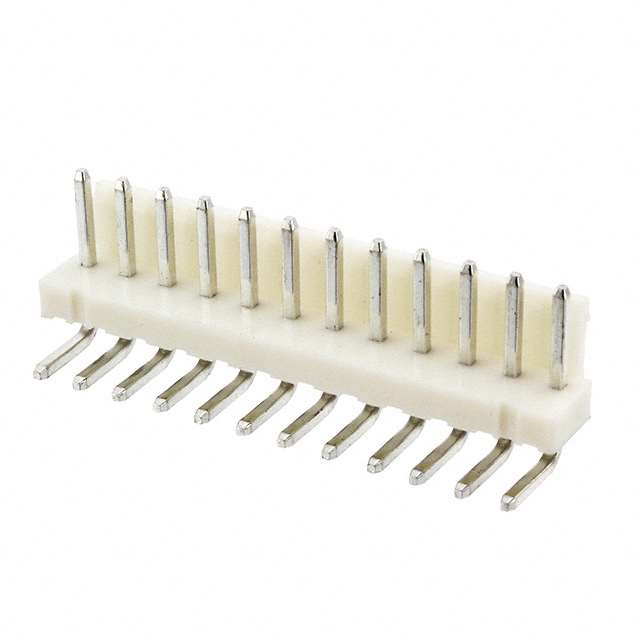

- Description：CONN HEADER R/A 12POS 3.96MM
- Series：Economy Power
- Mfr：TE Connectivity AMP Connectors
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.156" (3.96mm)
- Number of Positions：12
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 1 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：0.338" (8.59mm)
- Contact Length - Post：0.142" (3.60mm)
- Overall Contact Length：-
- Insulation Height：0.339" (8.61mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-25°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：White
- Current Rating (Amps)：7.5A
- Voltage Rating：250VAC
