1-6609020-1

Overview

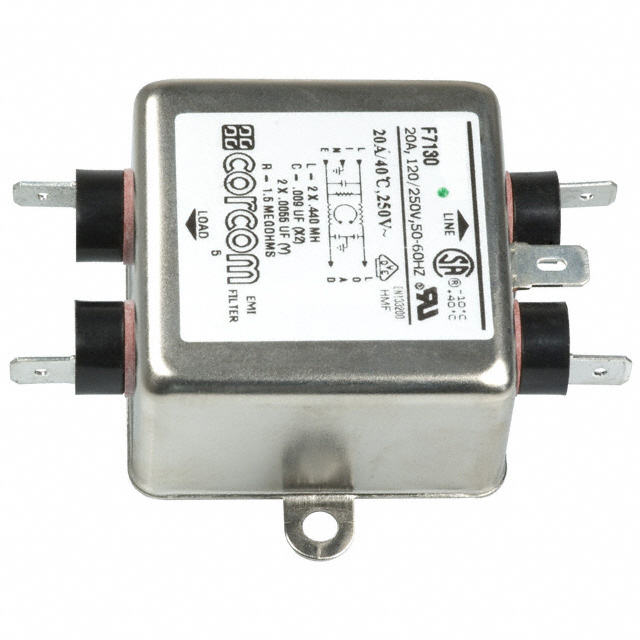

The TE Connectivity Corcom Filters model 1-6609020-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a current rating of 20 A and operates at 250 VAC with a frequency range of 50/60 Hz. The unit utilizes a single-stage configuration and employs quick connect terminals for electrical termination.

Feature Summary

• Provides wide band RFI suppression suitable for high impedance loads
• Engineered for applications requiring low current operation

Applications

• General purpose electronic equipment
• High impedance load circuits
• Low current power supply filtering

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with chassis mounting requirements and terminal types before procurement. Cross-reference datasheets for any recent product changes or obsolescence notices.

Selection Notes

Select this component for single-phase AC line filtering where a 20 A rating and 250 VAC operation are required. Consider the single-stage design and quick connect termination style for integration into chassis-mounted assemblies. Verify that the application involves high impedance loads compatible with the filter's characteristics.

Part Context

This component belongs to the TE Connectivity Corcom B Series, which specializes in RFI filters for general-purpose applications. The series is characterized by its ability to handle specific load impedances while providing effective electromagnetic interference suppression in compact form factors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
