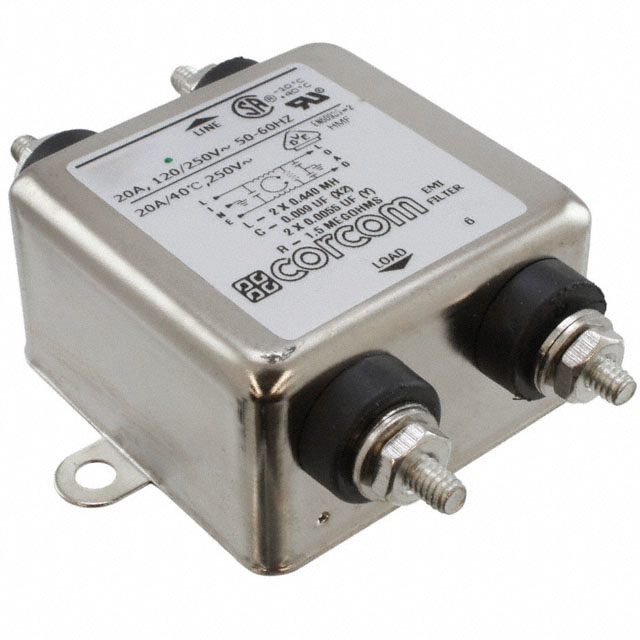

1-6609021-3

$29.46

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：B
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:9220189a902c Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：B
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (8-32)
Inductance：440µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

1-6609021-3

Overview

The TE Connectivity Corcom Filters 1-6609021-3 is a single-stage, chassis-mount power line filter designed for general-purpose applications. It operates at 50/60Hz with a rated voltage of 250VAC and a current capacity of 20A. The component features quick-connect terminals and is certified by UL, CSA, and VDE.

Feature Summary

Single-stage EMI/RFI filtering configuration
Chassis mount installation style
Quick-connect terminal termination

Applications

General purpose equipment
Industrial machinery
Power supply units

Procurement Notes

Verify the manufacturer part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for RoHS compliance status in the latest datasheet.

Selection Notes

Select this component for applications requiring 20A current handling and single-stage filtration. Confirm chassis mounting space and quick-connect terminal availability. Validate certification requirements such as UL or CSA for the target market.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, specifically the B Series. It is also known by the alias 20VB6. The component is categorized under power line filters for electromagnetic interference suppression.
