1-6609028-3

Overview

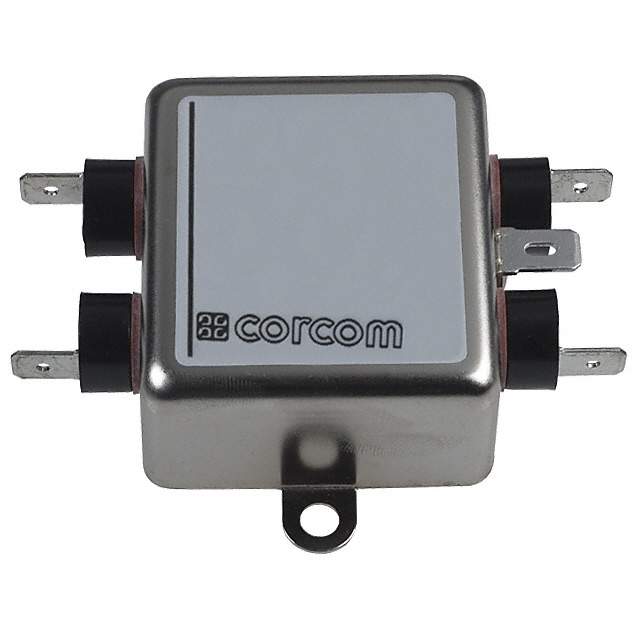

The TE Connectivity Corcom Filters 1-6609028-3 is a single-phase EMC/EMI line filter designed for commercial applications. It features a flanged chassis mount configuration with quick connect terminals for both input and output connections. The component is rated for a continuous current of 10 A at an AC voltage of 250 V, operating within the standard 50/60 Hz frequency range. This unit provides essential noise suppression capabilities while maintaining compliance with major international safety standards.

Feature Summary

• Provides effective electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for sensitive electronic equipment.
• Features a robust flanged chassis mount design ensuring secure installation in industrial enclosures.
• Utilizes convenient quick connect terminal interfaces to facilitate rapid wiring and assembly processes.

Applications

• Commercial power distribution systems requiring noise filtration
• Industrial control panels and automation equipment
• Medical device power supplies and diagnostic instruments

Procurement Notes

Verify that the specific application requires a single-stage filter configuration suitable for 10 A loads. Confirm compatibility with the 250 VAC rating and ensure the mounting environment supports chassis installation. Check for any specific regional certification requirements beyond standard CSA, UL, and VDE approvals before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase solution is required for moderate current applications up to 10 A. It is appropriate for environments where space allows for chassis mounting and quick connect wiring is preferred over soldering. Ensure the system operates within the specified 50/60 Hz frequency range and does not exceed the thermal limits defined in the official datasheet.

Part Context

This part belongs to the TE Connectivity Corcom K series, which offers a range of single-phase filters from 1 A to 10 A. The K series is characterized by its compact form factor and versatile mounting options, making it a common choice for general-purpose EMI filtering in commercial and light industrial sectors.

Replacement Considerations

The internal manufacturer number 1-6609028-3 corresponds to the Corcom K series 10A filter. Verify pinout and terminal spacing against potential substitutes to ensure mechanical fit.
