1-6609028-5

Overview

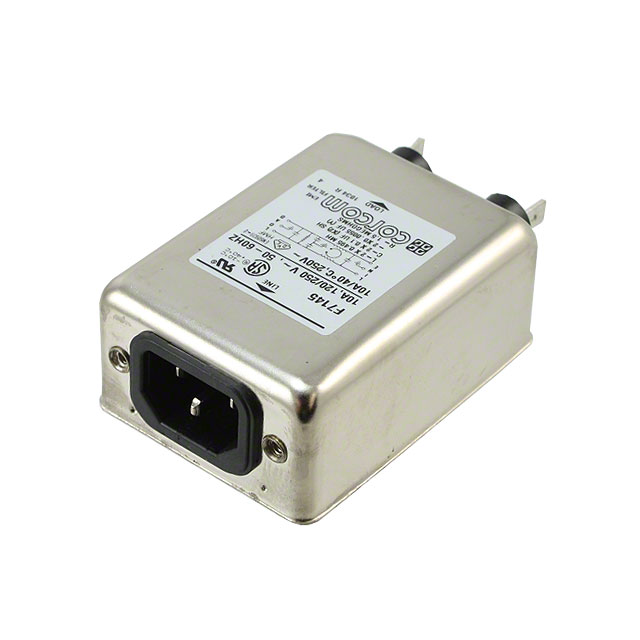

The TE Connectivity Corcom Filters model 1-6609028-5 is a single-phase EMC/EMI line filter designed for commercial applications. It features an IEC 320-C14 connector style with quick connect termination and flange mount installation. The component is rated for 10 A current and 250 VAC voltage at 50/60 Hz operating frequencies. It utilizes a single-stage filtering configuration to suppress electromagnetic interference.

Feature Summary

• Single-stage EMI/RFI filtering for commercial use
• IEC 320-C14 receptacle interface with male blade terminals
• Flange mount chassis installation design

Applications

• Commercial electronic equipment power entry
• Industrial control systems
• General purpose AC power line filtering

Procurement Notes

Verify the specific manufacturer part number 1-6609028-5 against official TE Connectivity documentation to confirm availability and compliance status. Ensure that the single-stage configuration and 10A rating align with your system's electrical requirements before procurement.

Selection Notes

Select this component when a single-stage filter solution is required for 10A circuits. Confirm that the IEC 320-C14 input format and quick connect termination method are compatible with the mating cable and panel mounting constraints of the target application.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial environments. The product integrates standard IEC power entry module interfaces with embedded filtering capabilities to meet regulatory emissions standards.

Replacement Considerations

Publicly confirmed substitute part numbers for 1-6609028-5 were not identified in the provided source material.
