1-6609031-3

Overview

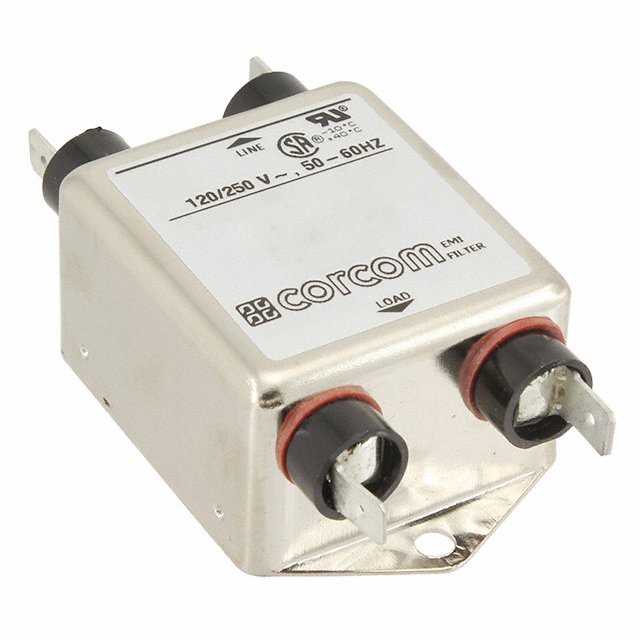

The TE Connectivity Corcom Filters part number 1-6609031-3 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration and supports a maximum operating current of 10 A at an AC voltage of 250 V. The unit operates within the standard 50/60 Hz frequency range and utilizes quick connect terminals for electrical interface.

Feature Summary

• Provides two-stage EMI/RFI noise suppression for power lines
• Designed for secure chassis mounting installation
• Utilizes quick connect terminal style for wiring

Applications

• Industrial equipment power input filtering
• Medical device power supply protection
• General purpose electronic system interference reduction

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with your design requirements. Confirm that the quick connect terminal style matches your existing wiring harness or PCB layout specifications before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, two-stage EMI filter rated for 10 A is required. Ensure the chassis mounting form factor fits the available enclosure space. Verify that the quick connect termination method aligns with the assembly process and terminal block availability in the target application environment.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product falls under the broader category of power line filters used to maintain signal integrity and comply with regulatory emissions standards in electronic systems.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical ratings and physical dimensions.
