1-6609032-4

Overview

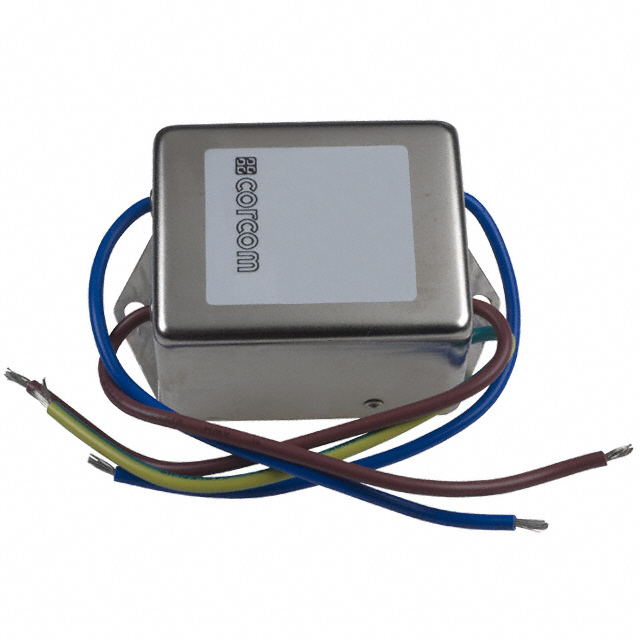

The TE Connectivity Corcom Filters model 1-6609032-4 is a single-phase EMC/EMI line filter designed for commercial applications. It supports a rated current of 10 A at 250 VAC and operates at 50/60 Hz frequencies. The component features a two-stage filtering configuration to suppress electromagnetic interference. Electrical connections are established via wire leads for both input and output terminals. This chassis-mount unit is part of the Corcom R series, providing reliable noise reduction for sensitive electronic equipment in standard power environments.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Wire lead termination style
• Chassis mounting design

Applications

• Commercial electronic equipment
• Industrial control systems
• Medical devices

Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the wire lead configuration matches your system requirements. Ensure the chassis mount dimensions align with your enclosure specifications. Check for any specific certification requirements such as UL or CSA relevant to your region. Validate the operating temperature range against your environmental conditions.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 10 A circuits. The wire lead option simplifies integration into custom assemblies compared to terminal block versions. Consider the chassis mount form factor for direct panel installation. Verify that the voltage rating meets the local mains supply standards. Evaluate the physical size constraints within the target equipment housing.

Part Context

This part belongs to the Corcom R series of single-phase filters from TE Connectivity. The series offers various current ratings and configurations for general-purpose noise suppression. The R series is widely used in commercial and industrial sectors for meeting regulatory emission standards. It complements other Corcom products like the MV and S series for different application needs.

Replacement Considerations

FN9246-3-06 by TE Connectivity Schaffner is listed as a similar replacement option.
