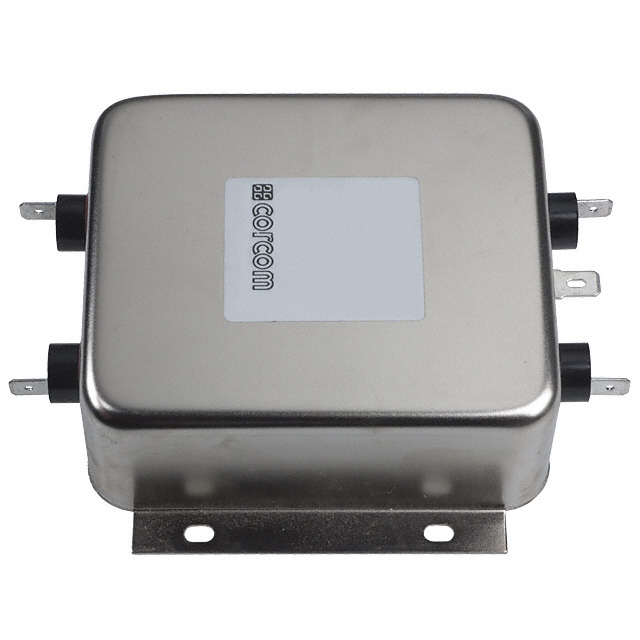

1-6609032-8

$55.09

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：R
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:5bb89092ca89 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：R
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：880µH

Download product information

1-6609032-8

Overview

The TE Connectivity Corcom Filters 1-6609032-8 is a single-phase EMC/EMI line filter rated for 20 A at 250 VAC. Operating at 50/60 Hz, this two-stage unit utilizes quick connect terminals and chassis mounting. It is designed to suppress electromagnetic interference in power lines within standard industrial frequency ranges.

Feature Summary

Two-stage filtering configuration for enhanced noise suppression
Chassis mount design with quick connect termination style

Applications

Industrial machinery power supply protection
Medical equipment EMI reduction
General purpose electronic device power filtering

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current availability status. Ensure that the required certifications and environmental compliance standards match the target application requirements before finalizing procurement decisions.

Selection Notes

Select this component when a high-current single-phase filter is required for chassis installation. Confirm that the quick connect terminal style aligns with the system wiring harness and that the two-stage attenuation meets the specific emission limits of the end product.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial applications. The series offers various configurations to address different current ratings and mounting needs for effective EMI/RFI management.

Replacement Considerations

Consult official substitution charts for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and mounting style to ensure compatibility with existing system designs.
