1-6609036-4

Overview

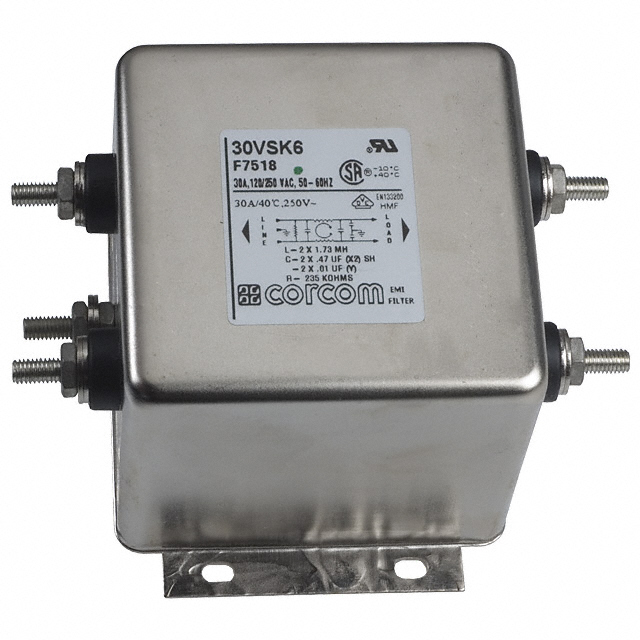

The TE Connectivity Corcom Filters model 1-6609036-4 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 30 A at an AC voltage of 250 V and operates at frequencies of 50/60 Hz. The unit features a single-stage configuration with threaded post termination (10-32).

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines.
• Utilizes a robust chassis mount design for secure installation.
• Employs threaded post connections for reliable electrical interfacing.

Applications

• Industrial equipment requiring EMI filtering
• Power distribution units
• General electronic systems

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility. Confirm that the threaded post termination style matches the system requirements. Check for any recent product change notices or RoHS status updates in the latest datasheet before finalizing procurement decisions.

Selection Notes

Select this component when a high-current single-phase filter is required. Ensure the application environment accommodates the chassis mounting method. Verify that the 10-32 threaded post interface aligns with the available connection hardware in the target assembly.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filtering solutions. The SK Series designation indicates its classification within the manufacturer's broader portfolio of electromagnetic interference filters designed for various industrial and commercial applications.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and termination style to ensure functional equivalence with other single-stage chassis-mount filters.
