1-6609036-6

Overview

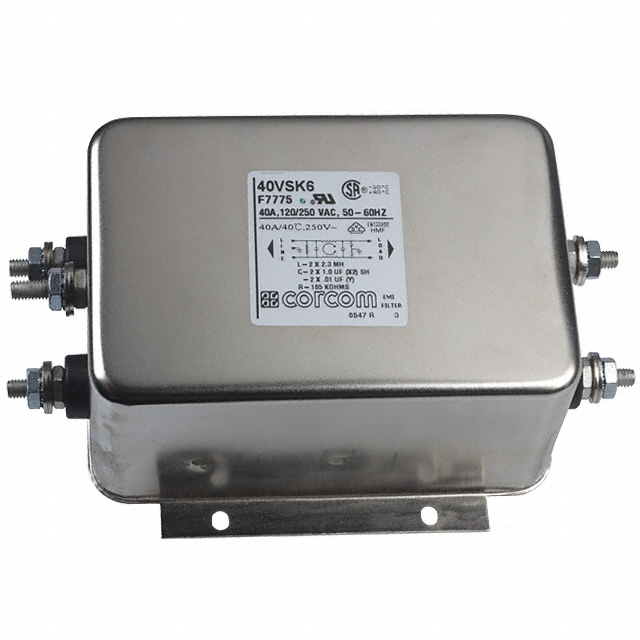

The TE Connectivity Corcom Filters 1-6609036-6 is a single-phase EMC/EMI line filter designed for industrial applications. It operates at 250 VAC and supports a current rating of 40 A at 50/60 Hz. The unit features a single-stage configuration with flange mount installation and threaded post (10-32) termination.

Feature Summary

• Reduces electrical noise and interference on AC power lines
• Industrial-grade EMC/EMI filtering capability
• Single-stage design for efficient noise suppression

Applications

• Industrial machinery power input
• Commercial equipment requiring EMI reduction
• AC power line noise suppression

Procurement Notes

Verify the exact current rating and voltage specifications against the official datasheet before integration. Confirm that the threaded post (10-32) termination style matches the system wiring requirements. Ensure the flange mount dimensions are compatible with the enclosure panel cutout to guarantee proper mechanical fit and secure installation.

Selection Notes

Select this component when a single-phase, high-current (40 A) solution is required for industrial environments. The 250 VAC rating suits standard commercial power distributions. Consider the threaded post termination if screw-down connections are preferred over quick-connect terminals. Verify compliance with relevant industrial safety standards for the target market.

Part Context

This part belongs to the TE Connectivity Corcom SK Series, which specializes in robust power line filters for demanding industrial settings. The series offers various current ratings and mounting options to accommodate diverse equipment needs while maintaining effective electromagnetic interference suppression.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
