1-6609037-1

Overview

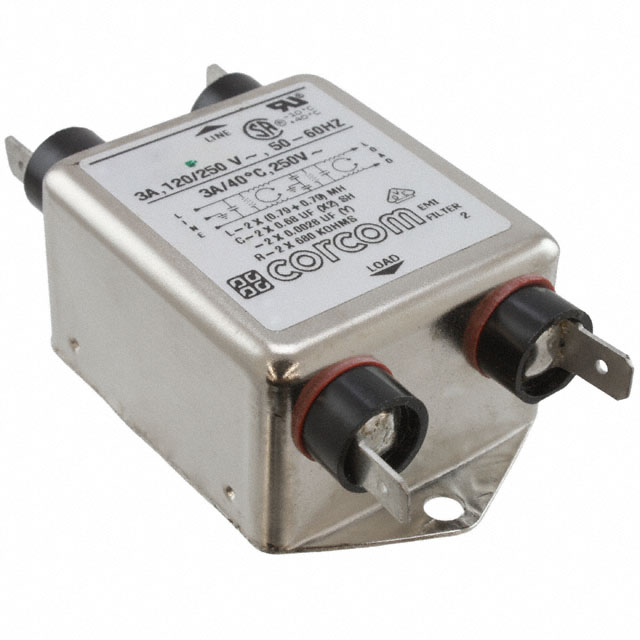

The TE Connectivity Corcom Filters 1-6609037-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with quick connect termination style. The component operates at a rated AC voltage of 250V and supports a current rating of 3A within the 50/60Hz frequency range. Certified by CSA, UR, and VDE, it functions reliably in temperatures from -10°C to 40°C.

Feature Summary

• Provides two-stage EMI/RFI noise suppression for power lines
• Utilizes quick connect terminals for efficient circuit integration
• Engineered for direct chassis mounting applications

Applications

• General purpose electronic equipment requiring EMI filtering
• Industrial control systems
• Medical devices

Procurement Notes

Verify the manufacturer part number against official TE Connectivity documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical characteristics and termination style. Cross-reference certification marks such as UL or VDE with the target market requirements before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, 3A rated filter with quick connect terminals is required. Ensure the application environment falls within the specified operating temperature range. Verify that the chassis mounting dimensions align with the enclosure design constraints.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product line offers various configurations for different current ratings and installation types, serving diverse industrial and commercial electronics markets globally.

Replacement Considerations

Consult official substitution guides for equivalent models. Verify compatibility regarding current rating, voltage rating, and physical mounting dimensions before implementing any alternative components.
