1-6609037-2

Overview

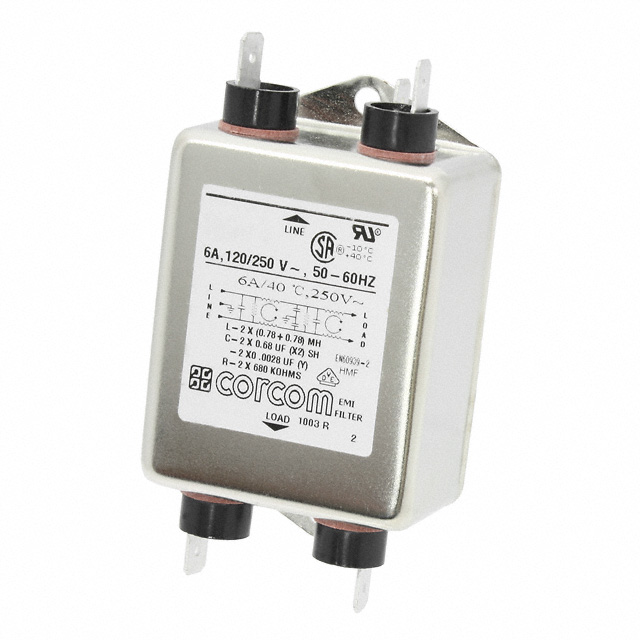

The TE Connectivity Corcom Filters model 1-6609037-2 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 6 A and operates at AC voltages up to 250V across 50/60Hz frequencies. The component features a two-stage configuration with quick connect termination styles. It is currently in active production and complies with RoHS3 standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure panel integration
• Quick connect termination style for simplified wiring

Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• General purpose EMI/RFI mitigation

Procurement Notes

Verify the manufacturer part number 1-6609037-2 against official TE Connectivity documentation to confirm specifications. Ensure compatibility with chassis mounting requirements and quick connect terminal interfaces. Check for specific certification needs such as UL, CSA, or VDE depending on regional deployment. Confirm RoHS3 compliance status if required by project constraints.

Selection Notes

Select this component for applications requiring single-phase EMI filtering with a 6A capacity. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the chassis mounting footprint aligns with the enclosure design. Verify that the quick connect terminals match the available wire gauge and connector types in the system.

Part Context

This filter belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for electromagnetic interference reduction. The product is categorized under single-phase EMC/EMI line filters. It is distinct from other models in the lineup based on its specific current rating, voltage tolerance, and two-stage filtering configuration.

Replacement Considerations

FN2080A-10-06 is listed as a similar replacement option by TE Connectivity Schaffner.
