Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：EMC
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

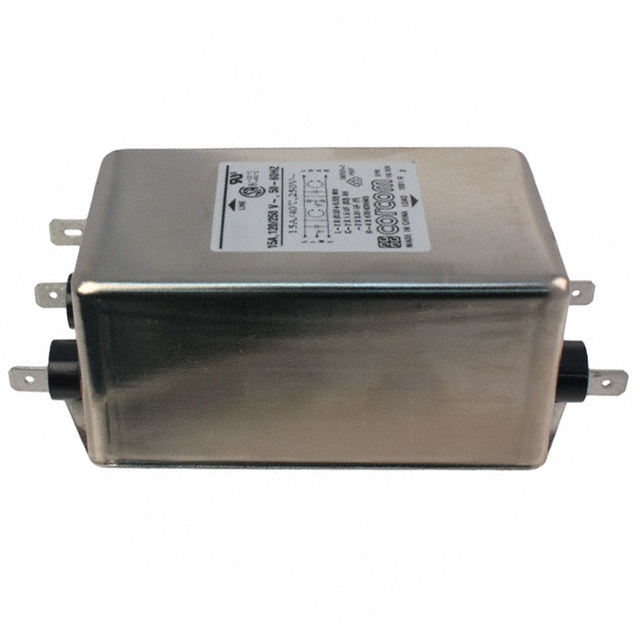

The TE Connectivity Corcom Filters 1-6609037-4 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 15 A at 250 VAC and operates at 50/60 Hz frequencies. The component features a two-stage filtering configuration with quick connect termination style. Certified by CSA, UR, and VDE agencies, it ensures compliance with international safety standards for electronic equipment interference suppression.
Feature Summary
- Provides effective electromagnetic interference (EMI) and radio frequency interference (RFI) suppression through a two-stage filtering architecture.
- Engineered for secure chassis mounting to ensure stable integration within industrial enclosures.
- Utilizes quick connect termination style for simplified wiring and assembly processes.
Applications
- Industrial automation control systems requiring EMI mitigation
- Medical equipment power input stages
- General-purpose electronic devices needing noise reduction
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to confirm compatibility. Ensure that the required certifications such as CSA, UR, or VDE meet your regional regulatory requirements before finalizing procurement decisions.
Selection Notes
Select this component when a single-phase filter with a 15 A rating is required for 250 VAC applications. Consider the two-stage design for enhanced noise attenuation compared to single-stage alternatives. Confirm that the chassis mounting form factor and quick connect terminals align with your system's mechanical and electrical interface constraints.
Part Context
This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 1-6609037-4 model specifically addresses high-current single-phase applications, offering robust performance in environments susceptible to electrical noise.
FAQ
What is the filtering configuration of the 1-6609037-4?
It utilizes a two-stage filtering configuration for enhanced EMI/RFI suppression.
What certification bodies approve this filter?
The component is certified by CSA, UR, and VDE.
