1-6609037-9

Overview

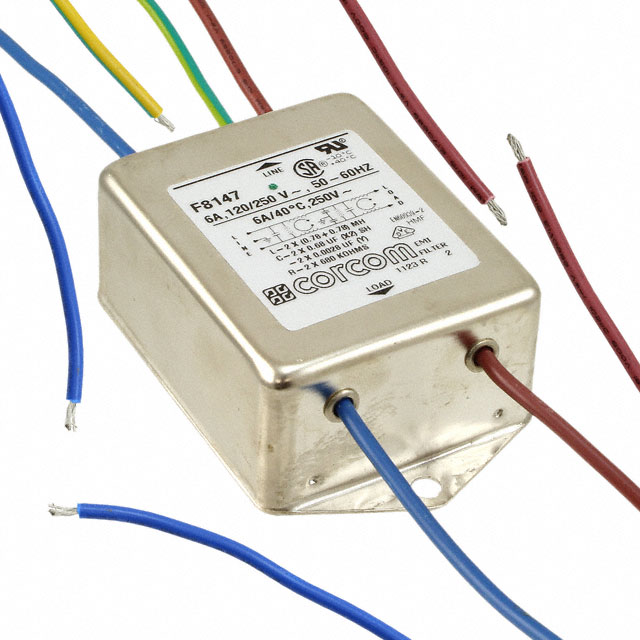

The TE Connectivity Corcom Filters 1-6609037-9 is a single-phase EMI/RFI line filter designed for chassis mounting. It supports a rated current of 6 A at 250 VAC and operates at 50/60 Hz frequencies. The unit features a two-stage filtering configuration with quick-connect terminals for secure electrical attachment. Certified by CSA, UL, and VDE agencies, it ensures compliance with commercial and medical safety standards. The component is engineered to mitigate electromagnetic interference in power supply lines.

Feature Summary

• Provides dual-stage attenuation for effective suppression of conducted electromagnetic and radio frequency interference
• Features quick-connect terminal style for reliable and efficient circuit integration
• Includes multi-agency safety certifications including CSA, UL, and VDE for global regulatory compliance

Applications

• General purpose electronic equipment requiring EMI mitigation
• Medical devices adhering to strict leakage current and noise standards
• Commercial industrial machinery power input stages

Procurement Notes

Verify the specific datasheet version corresponding to the part number before integration. Confirm that the quick-connect terminal dimensions match the mating connector specifications. Ensure the chassis mounting hole pattern aligns with the enclosure design. Validate that the 6 A current rating meets the system's maximum load requirements under all operating conditions.

Selection Notes

Select this component when a single-phase solution with two-stage filtering is required for 6 A applications. Consider the chassis mounting form factor if panel space is limited compared to wire-mount alternatives. Verify that the quick-connect termination style is compatible with the downstream wiring harness or PCB layout constraints.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filtering solutions. The 1-6609037-9 variant specifically addresses single-phase AC power line noise reduction. It is part of a broader portfolio offering various current ratings and mounting configurations for diverse industrial and commercial applications.

Replacement Considerations

Direct substitutes include other single-phase 6 A chassis-mount filters from the same manufacturer series. Cross-reference terminal styles and mounting dimensions to ensure mechanical compatibility. Verify equivalent attenuation performance curves against the original specification sheet.
