1-6609046-1

Overview

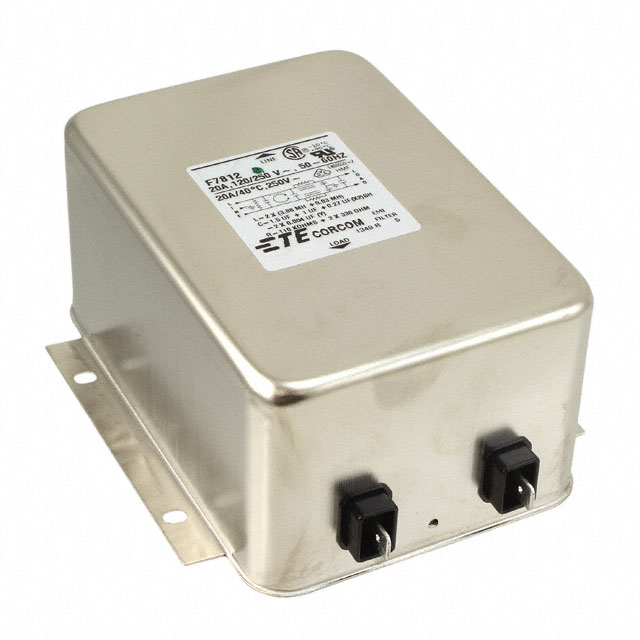

The TE Connectivity Corcom Filters 1-6609046-1 is a single-phase EMC/EMI line filter designed for commercial applications. It features a two-stage configuration with a rated current of 20 A and an AC voltage rating of 250 V at 50/60 Hz. The component utilizes quick connect terminals for end termination and supports chassis mounting. Certified by CSA, UL, and VDE, it ensures compliance with international safety standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High current capacity suitable for demanding power loads
• Quick connect terminal style for simplified assembly

Applications

• Commercial electronic equipment requiring EMI/RFI mitigation
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal spacing before integration. Ensure the mounting method aligns with chassis specifications. Confirm that the quick connect terminal type matches existing wiring harnesses or PCB layouts to avoid compatibility issues during installation.

Selection Notes

Select this model when high current handling up to 20 A is required alongside robust two-stage attenuation. Consider the chassis mount form factor and quick connect interface for system integration. Verify that the 250 VAC rating meets the operational voltage requirements of the target application circuit.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression. The 1-6609046-1 variant specifically addresses high-current single-phase applications, distinguishing itself from lower-rated counterparts within the broader product family through its 20 A capacity and dual-stage design.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
