1-6609046-2

Overview

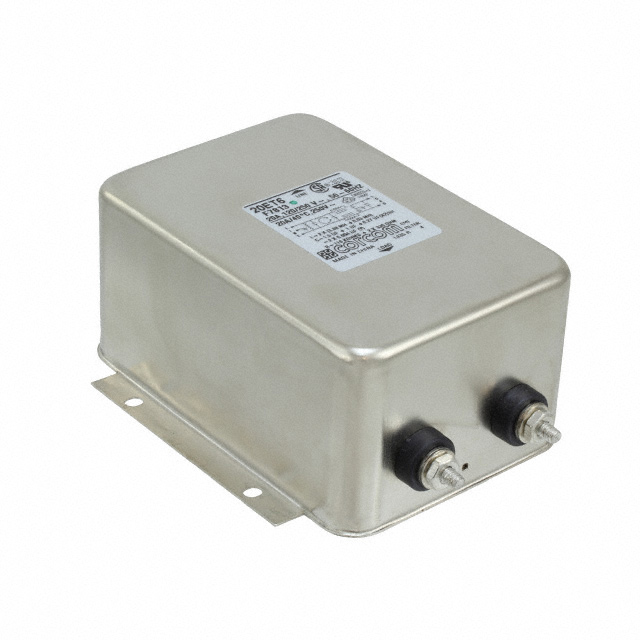

The TE Connectivity Corcom Filters 1-6609046-2 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 250VAC and a current capacity of 20A at 50/60Hz. The component utilizes quick-connect terminals for electrical termination and includes integrated fuse holders. Certified by CSA, UL, and VDE, it operates within a temperature range of -10°C to +40°C.

Feature Summary

• Provides EMI/RFI noise suppression for AC power lines
• Includes built-in fuse holder functionality
• Supports secure chassis panel installation

Applications

• Industrial machinery power input stages
• Medical equipment power supplies
• Commercial IT infrastructure units

Procurement Notes

Verify the specific datasheet version corresponding to part number 1-6609046-2 to confirm terminal pitch dimensions and fuse holder specifications. Ensure the selected variant matches the required certification marks (CSA, UL, VDE) for the target market. Confirm chassis mounting hole patterns against enclosure design requirements before procurement.

Selection Notes

Select this component when a 20A single-phase filter with integrated fusing is required. Compare against the broader T Series catalog for alternative current ratings or terminal configurations. Validate that the 250VAC rating aligns with the system's nominal voltage and surge protection needs.

Part Context

This part belongs to the TE Connectivity Corcom Filters product line, specifically categorized under power line filters. It is distinct from IEC receptacle-based modules like the 1EC4 series, offering a higher current capacity suitable for direct chassis integration in heavy-duty applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
