1-6609053-0

Overview

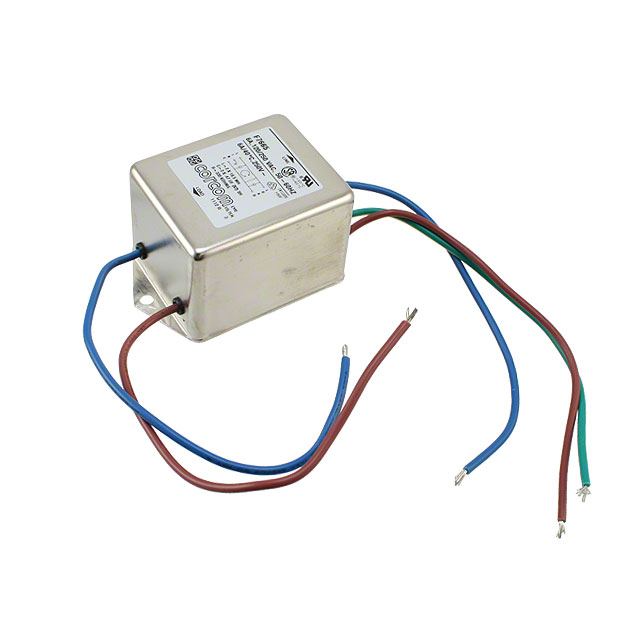

The TE Connectivity Corcom Filters model 1-6609053-0 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current capacity of 10A at 50/60Hz frequencies. The component utilizes a single-stage filter configuration with wire lead terminations for circuit connection. Key electrical specifications include an inductance value of 9.5mH. The unit is certified by CSA, UR, and VDE agencies and functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Single-stage EMI/RFI filtering configuration for noise suppression
• Chassis mount installation design with wire lead terminations
• Certified for international safety standards including UL, CSA, and VDE

Applications

• General purpose electronic equipment power line filtering
• Industrial control systems requiring EMI suppression
• Medical device power input stages

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status and manufacturing origin. Ensure that the wire lead termination style matches the system wiring requirements before procurement. Cross-reference certification marks such as UL and VDE with local regulatory compliance needs for the intended deployment region.

Selection Notes

Select this component when a single-phase, 10A rated EMI filter with wire leads is required for chassis mounting applications. Consider the 9.5mH inductance value for appropriate noise attenuation levels. Verify that the operating temperature range of -10°C to 40°C aligns with the environmental conditions of the target enclosure or system integration point.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The 1-6609053-0 variant specifically addresses single-phase power line noise reduction. It is part of a broader portfolio of industrial-grade filters designed for reliable performance in demanding electronic environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
