1-6609070-0

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FCD
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Bulk

SKU:f4833b61c443 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FCD
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：180 A
Frequency - Operating：50/60Hz
Applications：Regenerative Motor Drive
Approval Agency：UR
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

1-6609070-0

Overview

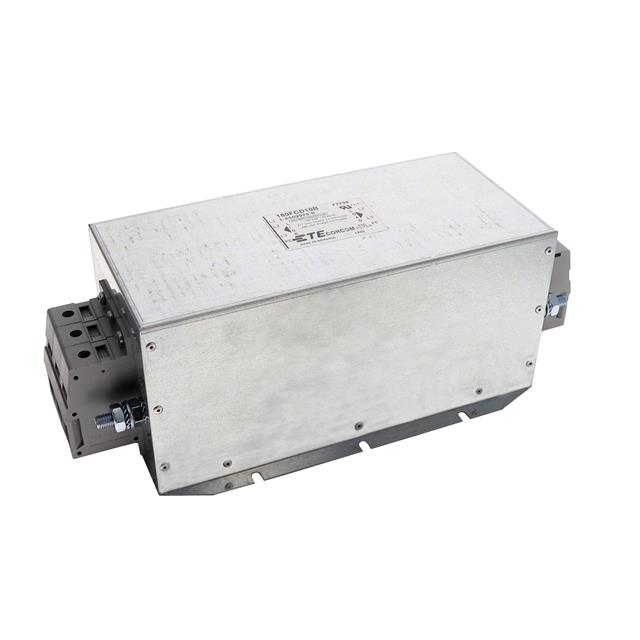

The TE Connectivity Corcom Filters model 1-6609070-0 is a three-phase (delta) EMC/EMI line filter designed for chassis mounting. It features a single-stage configuration with terminal block termination. The component supports a rated current of 180 A at operating frequencies of 50 Hz and 60 Hz. It is rated for AC voltages of 277 VAC and 480 VAC, with specific ratings of 277 VAC phase-to-neutral and 480 VAC phase-to-phase. The unit operates within a temperature range of -10°C to 40°C.

Feature Summary

Provides electromagnetic interference suppression for three-phase delta power systems
Utilizes a single-stage filtering architecture for noise reduction
Designed for secure chassis mounting applications
Equipped with terminal block connections for robust electrical interfacing

Applications

Regenerative motor drive systems
Industrial power distribution networks
Three-phase equipment requiring EMI mitigation

Procurement Notes

Verify the exact part number suffix and manufacturer documentation to confirm technical specifications. Ensure compatibility with the intended voltage and current requirements before integration. Cross-reference official datasheets for mechanical dimensions and certification details such as UR listing. Confirm that the terminal block termination method aligns with the system's wiring infrastructure.

Selection Notes

Select this component for applications requiring high-current handling in three-phase delta configurations. The single-stage design offers specific attenuation characteristics suitable for general industrial environments. Consider the chassis mounting requirement and terminal block interface when designing the enclosure layout. Verify that the operating temperature range meets the environmental conditions of the installation site.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial applications. The 1-6609070-0 variant specifically addresses high-current needs in three-phase systems. It complements other models in the lineup by providing solutions for regenerative drives and heavy-duty power electronics where significant electromagnetic noise must be controlled.
