1-6609070-2

Overview

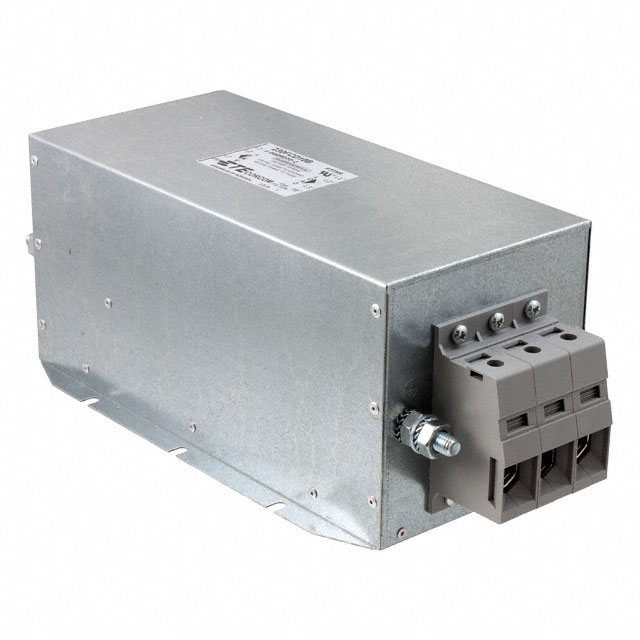

The TE Connectivity Passive Product 1-6609070-2 is a three-phase (Delta) EMC/EMI line filter designed for industrial power conditioning applications. It supports a continuous current rating of 230 A at AC 50/60Hz frequencies. The unit utilizes a single-stage filtering architecture and features terminal block connections for secure electrical interfacing. Constructed for chassis mounting, the filter operates within an ambient temperature range of -10°C to 40°C. It holds UL approval agency certification, ensuring compliance with specific safety standards for electromagnetic interference suppression in high-current power systems.

Feature Summary

• Provides effective electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for three-phase Delta configurations
• Engineered for high-capacity power handling with a 230 A continuous current rating
• Utilizes robust terminal block termination methods for reliable electrical connectivity
• Designed for direct chassis mounting to facilitate integration into industrial control panels

Applications

• Industrial motor drive systems requiring EMI mitigation
• Three-phase power distribution units in manufacturing environments
• Heavy machinery power supplies subject to strict EMC regulations
• Uninterruptible power supply (UPS) input/output stages

Procurement Notes

Verify that the application requires a three-phase Delta configuration, as this filter is not compatible with Wye systems. Confirm that the operating environment temperature remains within the specified -10°C to 40°C range to ensure performance integrity. Ensure adequate chassis space is available for the physical dimensions of the unit and that terminal block wiring practices align with the 230 A current capacity requirements for safe installation.

Selection Notes

Select this component when designing systems that demand significant attenuation of conducted emissions in three-phase Delta circuits. The 230 A rating makes it suitable for heavy-duty industrial loads rather than light commercial applications. Consider the chassis mount form factor if panel space allows for external filter placement. Verify that the terminal block interface matches existing busbar or cable termination strategies to avoid custom adapter requirements during system integration.

Part Context

This component belongs to TE Connectivity's passive product portfolio, specifically within the power line filter category. It addresses electromagnetic compatibility challenges in industrial power electronics by suppressing noise generated by switching devices. The design focuses on maintaining signal integrity and preventing interference with sensitive control equipment connected to the same power network.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
