Product Detailed Parameters
- Description：LINE FILTER 36A CHASSIS MOUNT
- Series：FCD
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：36 A
- Frequency - Operating：50/60Hz
- Applications：Regenerative Motor Drive
- Approval Agency：UR
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

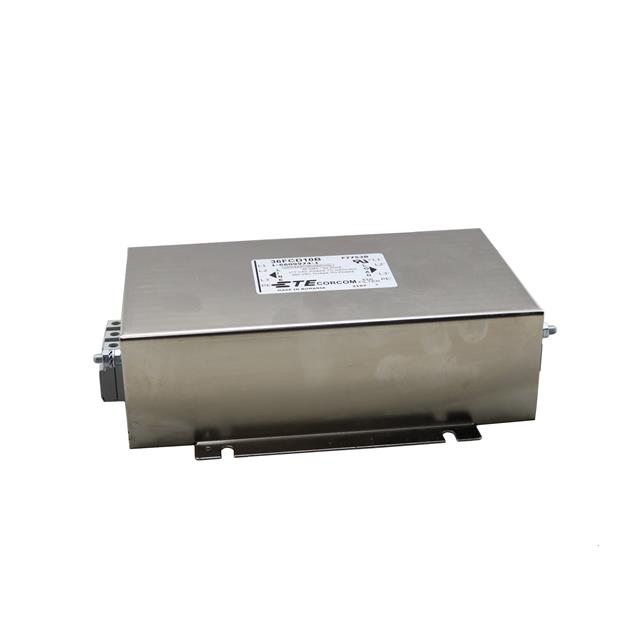

The TE Connectivity Corcom Filters model 1-6609974-1 is a three-phase EMC/EMI line filter belonging to the FCD series. It provides single-stage filtering for power lines with a rated current of 36 A and operates at frequencies of 50/60 Hz. Designed for chassis mounting, this component utilizes terminal block connections for secure electrical interfacing. The unit serves as a general-purpose solution for mitigating electromagnetic interference in industrial power distribution systems.
Feature Summary
- Provides single-stage EMI/RFI attenuation for three-phase power circuits
- Supports high-current applications up to 36 amperes
- Features robust chassis mounting construction for stable installation
Applications
- Industrial machinery power input stages
- Three-phase motor drive systems
- General purpose power distribution panels
Procurement Notes
Verify that the required current rating of 36 A aligns with the system design specifications before procurement. Confirm that the terminal block interface matches the existing wiring harness or busbar configuration. Ensure the chassis mounting dimensions accommodate the available enclosure space. Cross-reference the part number 1-6609974-1 with the official TE Connectivity datasheet to confirm current availability and manufacturing status.
Selection Notes
Select this component when a single-stage filter is sufficient for the specific noise reduction requirements of the application. The 36 A rating makes it suitable for heavy-duty industrial loads. Consider the terminal block termination style if screw-down connections are preferred over quick-connect terminals. Verify that the physical footprint fits within the designated panel cutout or mounting area.
Part Context
This component is part of the Corcom FCD series, which specializes in three-phase power line filters. The series is engineered for demanding industrial environments requiring reliable electromagnetic compatibility. The part number 1-6609974-1 is also identified by the alias 36FCD10B within manufacturer documentation.
Replacement Considerations
Consult the official TE Connectivity selector charts for direct equivalents. Verify that any substitute maintains the 36 A current rating and three-phase configuration.
