1-6609974-3

Overview

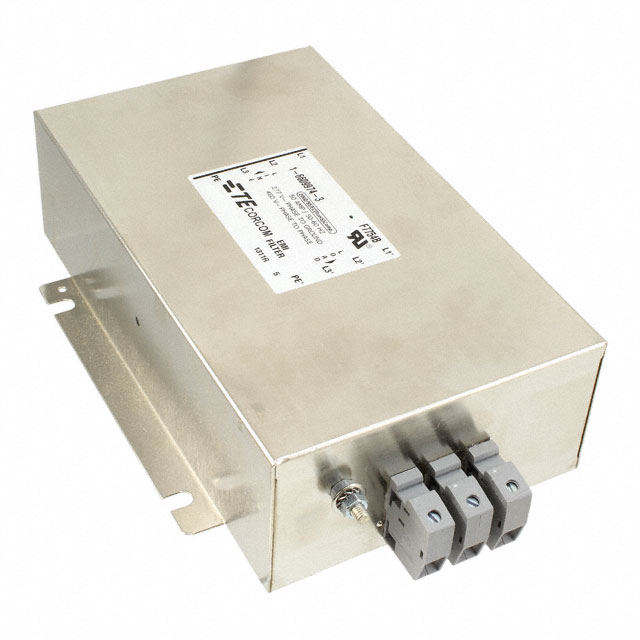

The TE Connectivity Corcom Filters part number 1-6609974-3 is a three-phase (delta) EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 50 A at AC 50/60 Hz frequencies. The unit features a single-stage configuration with block-style termination for secure electrical connections.

Feature Summary

• Provides electromagnetic interference suppression for three-phase delta-connected systems
• Engineered for direct chassis installation to ensure mechanical stability
• Utilizes block terminal connections for robust circuit integration

Applications

• Industrial machinery requiring EMI filtering for three-phase power inputs
• Power conversion systems utilizing delta configurations
• Heavy-duty equipment protection against conducted noise

Procurement Notes

Verify the specific datasheet version and physical dimensions before procurement, as chassis mount filters require precise panel cutouts. Confirm that the block termination style matches your wiring harness or busbar interface. Ensure the 50 A rating aligns with your system's continuous load requirements and thermal management capabilities.

Selection Notes

Select this component when a three-phase delta topology is required rather than wye. The 50 A capacity suits high-power industrial loads. Verify that the single-stage attenuation meets your specific emission standards, as higher performance may necessitate multi-stage designs.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line conditioning. It serves as a critical interface between the AC power source and sensitive electronic loads, mitigating noise generated by switching devices or external sources in industrial environments.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number.
