1-776266-1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

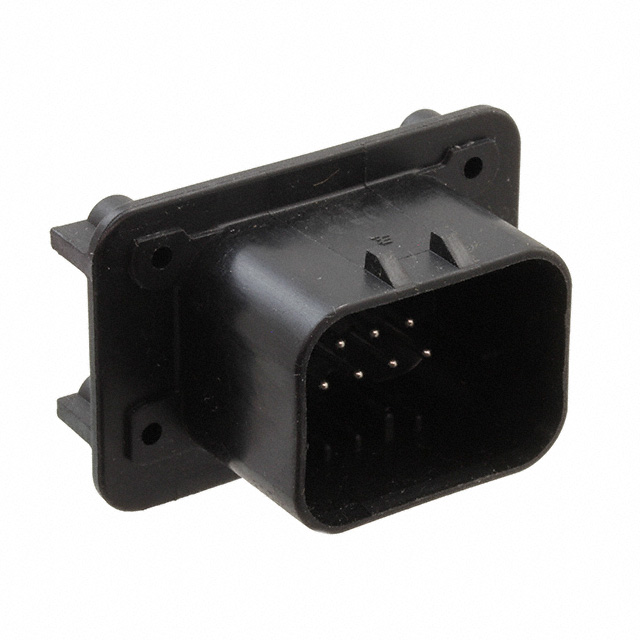

- Description：CONN HEADER R/A 14POS 4MM
- Series：AMPSEAL
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：14
- Number of Rows：3
- Row Spacing - Mating：0.157" (4.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Panel Mount, Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold-Palladium
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Board Guide, Sealable
- Operating Temperature：-40°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：250VAC
