10 AHV S FP

Overview

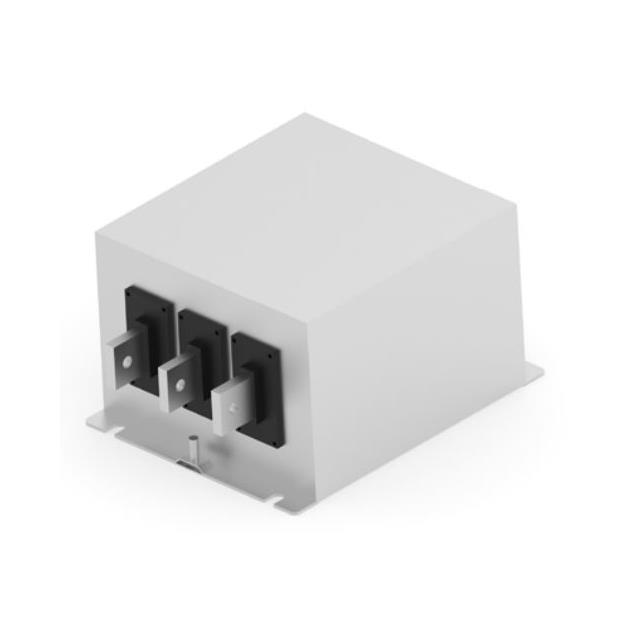

The TE Connectivity Corcom Filters 10AHVSFP is a high-performance, two-stage EMC/EMI power line filter designed for demanding industrial and energy applications. It features a robust chassis mount configuration with quick-connect terminals for secure integration. The unit supports a continuous current rating of 10A and operates on AC voltages up to 250VAC at standard frequencies of 50Hz and 60Hz. Certified by major regulatory bodies including CSA, UL, and VDE, it ensures compliance with international safety standards. The component is RoHS3 compliant and suitable for environments requiring reliable noise suppression in critical power systems.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with quick-connect terminal interface
• Certified for global safety and regulatory compliance

Applications

• Electric vehicle fast charging infrastructure
• Battery energy storage systems
• Solar power generation equipment

Procurement Notes

Verify the exact suffix designation against the manufacturer's official documentation to ensure correct terminal style and certification requirements. Confirm that the chassis mounting dimensions align with the target enclosure specifications. Check for specific voltage ratings required by the application circuit. Ensure compatibility with the intended operating temperature range. Validate regulatory certifications needed for the final product market.

Selection Notes

Select this component when high-current EMI filtering is required for stationary or mobile energy systems. The two-stage design provides superior attenuation compared to single-stage units. Ensure the chassis mounting method fits the available panel space. Verify that the quick-connect terminals match the wiring harness specifications. Consider the thermal management capabilities if installed in enclosed spaces.

Part Context

This part belongs to the Corcom AHV series, which is engineered for high-power density applications. The series is specifically tailored for the electric vehicle and renewable energy sectors. It represents a specialized solution for managing electrical noise in high-voltage and high-current environments where standard filters may be insufficient.

Replacement Considerations

Consult the official TE Connectivity Corcom replacement guide for direct equivalents. Verify that any substitute maintains the same two-stage configuration and current rating. Ensure mechanical fitment and terminal compatibility are preserved during substitution.
