Product Detailed Parameters
- Description：LINE FILTER 520VAC 1KA CHASS MNT
- Series：APH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：1 kA
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

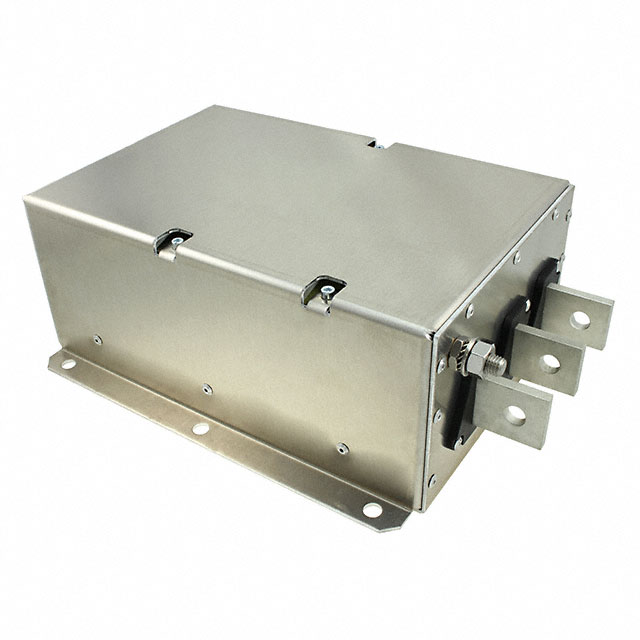

The TE Connectivity Corcom Filters 1000APH12L is a three-phase EMI/EMC line filter designed for high-current industrial applications. It features a chassis mount configuration with terminal post termination. The unit supports a current rating of 1 kA and operates at 520V AC, 50/60Hz. It utilizes a three-stage filtering configuration to ensure effective noise suppression.
Feature Summary
- Three-phase EMC/EMI filtering capability
- High current handling capacity
- Robust chassis mount construction
Applications
- Industrial power distribution systems
- Heavy machinery power supplies
- High-power electronic equipment
Procurement Notes
Verify the specific voltage and current requirements against the datasheet before procurement. Confirm that the terminal post termination style matches the existing busbar or wiring infrastructure. Ensure the chassis mounting dimensions are compatible with the intended enclosure space. Check for any recent product change notices regarding component sourcing.
Selection Notes
Select this model when three-phase filtering is required for currents up to 1 kA. The chassis mount style is suitable for integration into larger electrical cabinets or frames. Consider the terminal post termination for secure connections in high-vibration environments. Evaluate the three-stage design for superior attenuation needs compared to single-stage alternatives.
Part Context
This component belongs to the APH series of power line filters from TE Connectivity Corcom Filters. The series is engineered for demanding industrial environments requiring reliable electromagnetic interference suppression. The 1000APH12L specifically addresses high-power three-phase applications where significant noise reduction is critical for system stability.
