Product Detailed Parameters
- Description：LINE FILTER 690VAC 1KA CHASS MNT
- Series：APH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：690V
- Current：1 kA
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

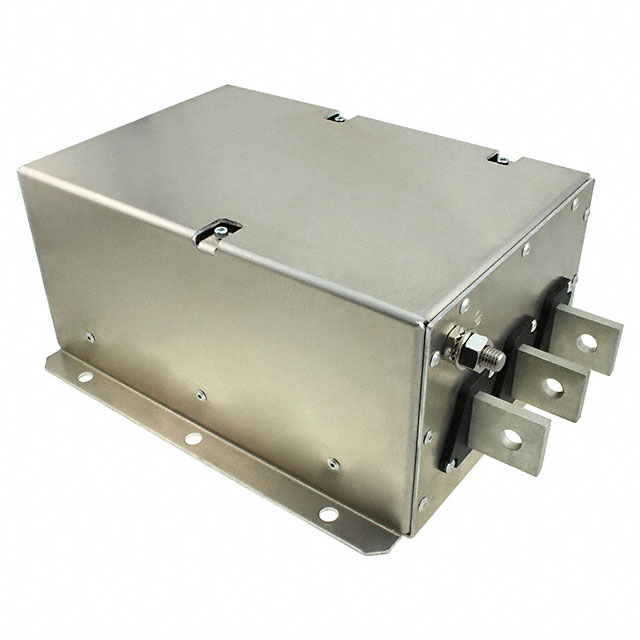

The TE Connectivity Corcom Filters 1000APH12P is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It features a rated voltage of 690VAC and a current capacity of 1A at 50/60Hz. The unit utilizes a three-stage configuration to provide robust noise attenuation. Electrical connections are established via terminal posts, ensuring secure integration into industrial power systems requiring high reliability.
Feature Summary
- Three-stage filtering architecture for enhanced noise suppression
- Terminal post termination for secure electrical connection
- Chassis mount design for stable installation
Applications
- Industrial power distribution systems
- Equipment requiring three-phase Delta power filtering
- Applications with 690VAC input requirements
Procurement Notes
Verify the specific datasheet version for the 1000APH12P to confirm exact dimensional tolerances and terminal specifications. Ensure compatibility with the target chassis mounting holes and terminal post spacing. Cross-reference the official TE Connectivity documentation for any recent product change notices or environmental compliance updates prior to finalizing procurement.
Selection Notes
Select this component when a three-phase Delta configuration is required for 690VAC applications. The 1A rating dictates suitability for low-current sensitive loads. Verify that the terminal post interface matches the available wiring infrastructure. Confirm that the chassis mounting style aligns with the enclosure design constraints.
Part Context
This part belongs to the TE Connectivity Corcom APH series, which specializes in three-phase power line filters. The series addresses conducted EMI/RFI interference in industrial environments. The 1000APH12P specifically targets Delta-connected systems operating at 690VAC, providing essential signal integrity protection for connected electronic equipment.
