Product Detailed Parameters
- Description：LINE FILTER 690VAC 1KA CHASS MNT
- Series：APS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：690V
- Current：1 kA
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

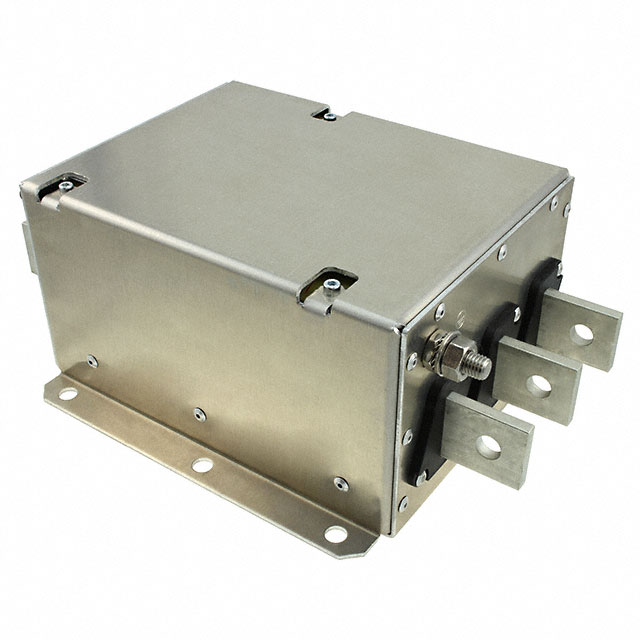

The TE Connectivity Corcom Filters 1000APS12P is a three-phase power line filter designed for chassis mounting. It features a 690VAC voltage rating and a 1A current capacity. The unit provides three-stage filtering to suppress electromagnetic interference (EMI) and radio frequency interference (RFI). Certified by CSA, UR, and VDE, it is suitable for general-purpose industrial applications requiring robust noise suppression in high-voltage AC environments.
Feature Summary
- Three-stage EMI/RFI filtering architecture
- Chassis mount construction for secure installation
- General-purpose design for industrial use
Applications
- Industrial machinery power supplies
- Three-phase motor drive systems
- General-purpose electronic equipment
Procurement Notes
Verify the specific part number against official TE Connectivity documentation to confirm current availability and manufacturing status. Ensure that the chassis mounting requirements and electrical ratings match the target application specifications before procurement. Cross-reference certification marks such as CSA, UR, and VDE with regional compliance needs.
Selection Notes
Select this component when three-phase EMI suppression is required at 690VAC. Confirm that the 1A current rating meets the load requirements. Verify chassis mounting compatibility and ensure that the three-stage filtering performance aligns with the system's noise immunity standards.
Part Context
This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial applications. The series offers various configurations for different voltage and current ratings, focusing on reliable EMI/RFI suppression and compliance with international safety standards.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation or authorized distributors for verified alternatives if this specific model is discontinued or unavailable.
FAQ
What is the phase configuration of the 1000APS12P?
The 1000APS12P is a three-phase power line filter.
What is the maximum voltage rating?
The maximum voltage rating is 690VAC.
