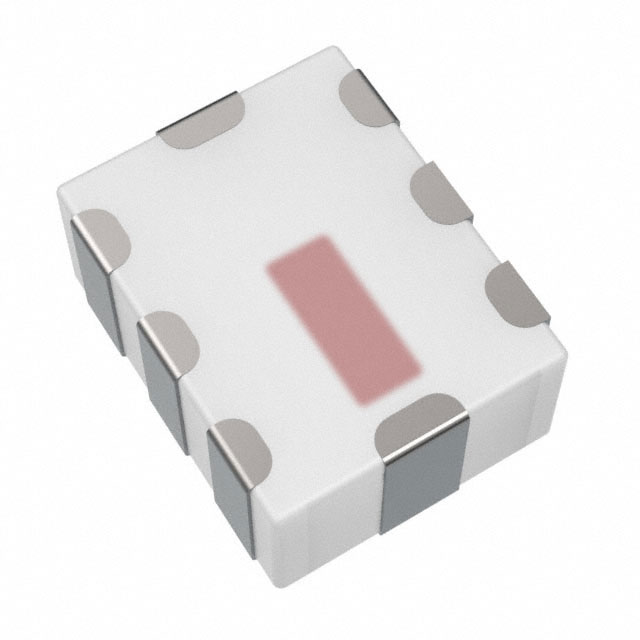

1000LP41B1000001E

$0.69

Description：RF FILTER LOW PASS 911.5MHZ 1210
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:20b9b674a1b5 Category: RF Filters Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER LOW PASS 911.5MHZ 1210
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：911.5MHz
Bandwidth：97MHz
Filter Type：Low Pass
Ripple：-
Insertion Loss：0.9dB
Mounting Type：Surface Mount
Package / Case：1210 (3225 Metric), 8 PC Pad
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max)：0.065" (1.65mm)

Download product information

1000LP41B1000001E

Overview

The Johanson Technology Inc. 1000LP41B1000001E is a low-pass RF filter designed for signal conditioning applications. It operates with a center frequency of 911.5 MHz and provides a bandwidth of 97 MHz. The component features an insertion loss of 0.9 dB and is housed in a 1210 (3225 Metric) surface-mount package measuring 3.2 mm by 2.5 mm.

Feature Summary

Provides low-pass filtering characteristics for radio frequency signal conditioning
Designed for surface-mount board mounting applications

Applications

RF signal conditioning circuits
Low-pass filtering in communication systems

Procurement Notes

Verify the exact part number against official manufacturer documentation to confirm specifications, as distributor listings may contain incomplete data. Confirm RoHS compliance status and current manufacturing availability directly with Johanson Technology Inc., as product status can change without immediate public notice.

Selection Notes

Select this component when a low-pass filter with a 911.5 MHz center frequency and 97 MHz bandwidth is required. Ensure the design accommodates the 1210 surface-mount footprint and that the 0.9 dB insertion loss meets system performance requirements.

Part Context

This component belongs to the Johanson Technology RF filters category, specifically within their integrated passive components portfolio. It is engineered for high-frequency applications requiring precise signal filtering in compact surface-mount formats.
