10061913-100PLF

Overview

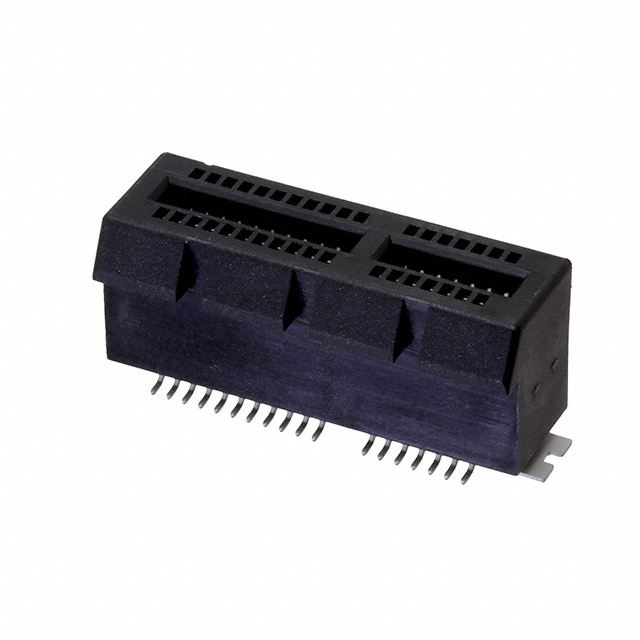

The Amphenol ICC (FCI) 10061913-100PLF is a PCI Express Gen 3 card edge connector designed for vertical surface mount applications. It features 36 positions with a 1.00mm pitch, supporting high-speed data transmission standards. The connector utilizes copper alloy contacts with a gold finish to ensure reliable signal integrity and low contact resistance. Rated for 1.1A per contact and 300VAC, it accommodates PCB thicknesses of 1.56mm. The housing is constructed from black nylon, providing durability and insulation for demanding electronic environments.

Feature Summary

• Vertical surface mount design for compact board integration
• Gold-plated copper alloy contacts for enhanced conductivity
• Optimized for PCI Express Gen 3 signal integrity

Applications

• PCI Express Gen 3 expansion cards
• High-density server backplanes
• Industrial control system interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin configuration and plating specifications. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement orders.

Selection Notes

Select this component when a vertical, surface-mount solution is required for PCI Express Gen 3 applications. Confirm that the 1.00mm pitch and 36-position count align with the circuit board layout requirements and mating interface constraints.

Part Context

This part belongs to the Amphenol FCI interconnect portfolio, acquired by Amphenol Corporation. It serves as a specialized solution for high-reliability signal transmission in computing and communication infrastructure, replacing legacy connectors with improved performance characteristics.

Replacement Considerations

Cross-reference with 10061913-100TLF for potential mechanical or packaging variations within the same series. Verify electrical parameters and mounting style compatibility before substituting.
