10061913-100TLF

Overview

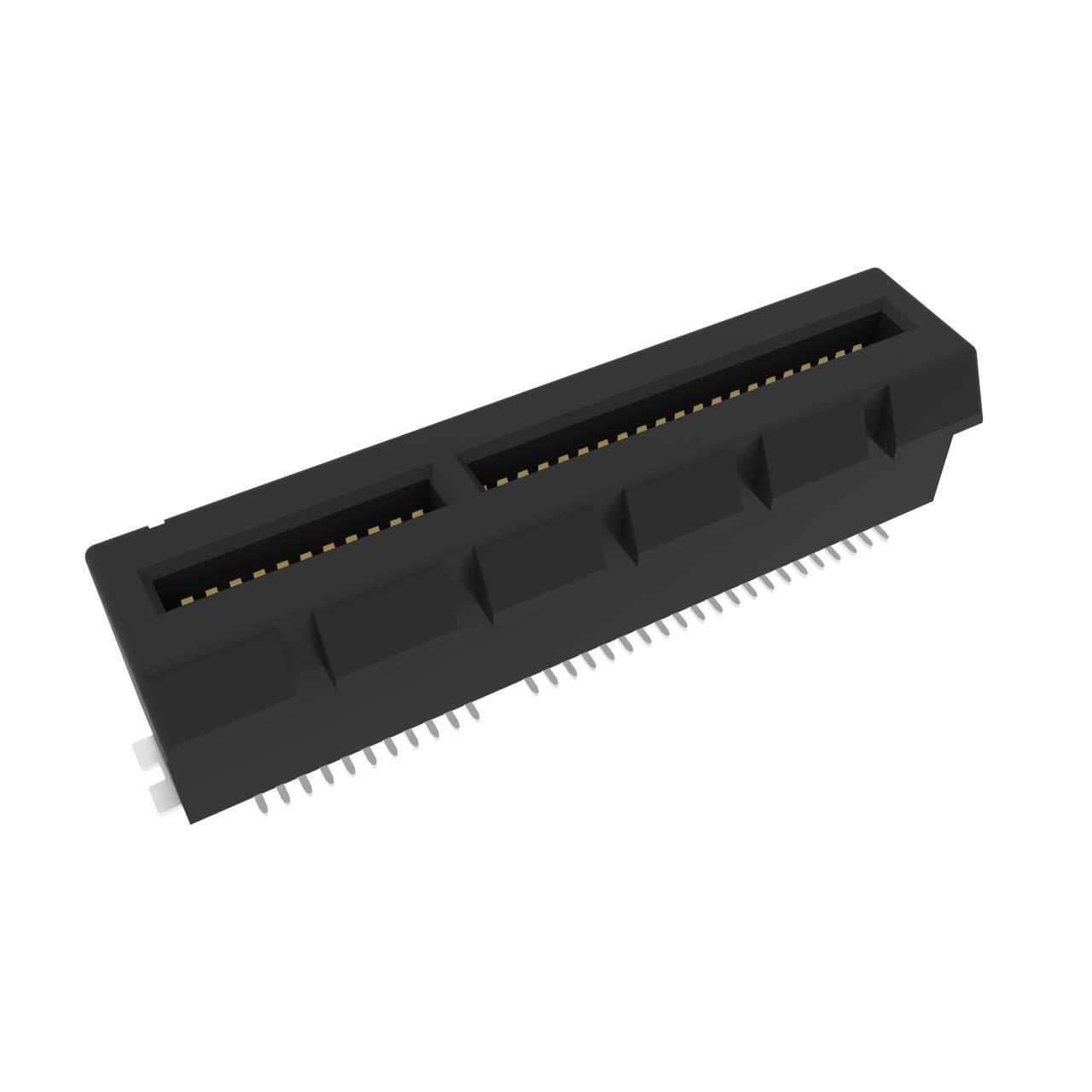

The Amphenol ICC (FCI) 10061913-100TLF is a PCI Express card edge connector designed for vertical surface mount applications. It features 36 positions with a 1.00mm pitch and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports a maximum current rating of 1.1A and is compatible with PCBs having a thickness of 1.56mm. Constructed with a nylon housing, this female jack connector meets RoHS standards and is intended for high-density electronic interconnect solutions.

Feature Summary

• Vertical surface mount design for space-constrained PCB layouts
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Nylon housing material providing structural stability and insulation

Applications

• PCI Express peripheral cards
• High-density server backplanes
• Industrial control system interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin configuration and plating specifications. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement orders to prevent integration errors.

Selection Notes

Select this component when a low-profile, vertical interface is required for PCI Express generation 3 applications. Consider the 1.00mm pitch and 36-position count to match the specific data line requirements of the host system architecture.

Part Context

This part belongs to the Amphenol FCI I/O connector portfolio, which provides comprehensive interconnect solutions for information technology and communication markets. The series emphasizes signal integrity and power management capabilities within compact form factors.

Replacement Considerations

Consult official cross-reference documentation for verified substitute part numbers from the same manufacturer family. Generic equivalents may not maintain identical mechanical tolerances or electrical performance characteristics.
