10061913-101CLF

Overview

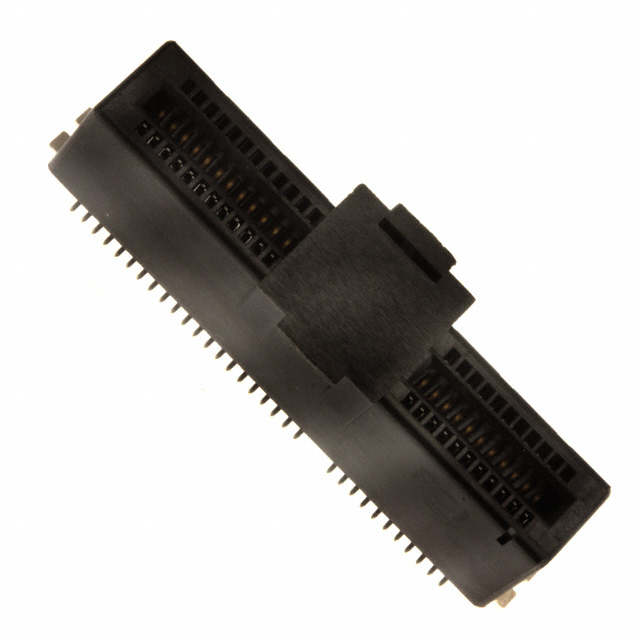

The Amphenol ICC (FCI) 10061913-101CLF is a PCI Express Gen 3 card edge connector designed for vertical surface mount applications. It features a 1.0mm pitch and provides 64 positions. The connector utilizes cantilever contact types with gold plating to ensure reliable signal integrity. It supports a board thickness of 1.56 mm and operates within a temperature range of -55°C to 85°C. The housing is constructed from black nylon insulation, suitable for high-density interconnect requirements in modern computing architectures.

Feature Summary

• Vertical surface mount design optimized for space-constrained PCB layouts
• Cantilever contact mechanism ensures secure mating force and durability
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Compatible with standard PCI Express architecture implementations

Applications

• Desktop PC motherboard integration
• Server backplane connections
• Workstation expansion slots
• Industrial embedded systems interface processing

Procurement Notes

Verify the specific suffix 'CLF' against official Amphenol documentation to confirm lead-free compliance and material specifications. Ensure the ordering quantity aligns with manufacturer minimum order requirements. Cross-reference the Mouser part number 649-10061913-101CLF for accurate availability status. Confirm that the selected variant matches the required 64-position configuration and vertical orientation before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring PCI Express Gen 3 compatibility with vertical mounting constraints. The 1.0mm pitch allows for high pin density in limited board areas. Verify that the target application environment falls within the specified -55°C to 85°C operating temperature range. Ensure the PCB stack-up accommodates the 1.56mm board thickness requirement for proper mechanical engagement and signal integrity.

Part Context

This connector belongs to the Amphenol FCI PCIe Card Edge Connector family, which supports information and communication market growth. The product line emphasizes signal integrity performance and power management solutions. Amphenol acquired FCI in 2016, integrating these technologies into the Amphenol ICC division. This specific model represents a standard solution for desktop and server interconnect applications.

Replacement Considerations

Consult official Amphenol cross-reference documents for verified substitute part numbers. Generic equivalents may not match the precise cantilever contact geometry or pitch specifications. Verify compatibility with existing PCB footprints and mating card dimensions before substitution.
