Product Detailed Parameters
- Description：CONN PCI EXP FMALE 64POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Download product information
Overview

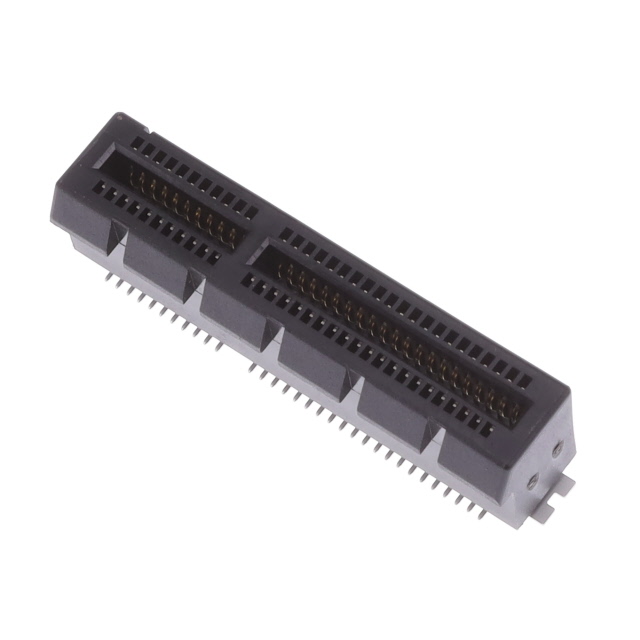

The Amphenol ICC (FCI) 10061913-101PLF is a PCI Express GEN 3 card edge connector designed for vertical surface mount installation. It features 64 positions with a 1.00mm pitch across two rows. The contacts are made of copper alloy with gold plating, rated at 1.1A current and 30.0µin thickness. Insulation material is nylon, operating within a temperature range of -55°C to 85°C.
Feature Summary
- Vertical surface mount configuration for PCB integration
- Cantilever contact type ensuring reliable card engagement
- Gold-plated copper alloy contacts for signal integrity
- Nylon insulation housing for structural stability
Applications
- PCI Express GEN 3 card edge interfaces
- High-speed data transmission modules
- Industrial computing hardware
- Telecommunications equipment backplanes
Procurement Notes
Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the component meets all required industry standards for your specific application environment. Ensure compatibility with existing PCB footprint designs and mating card specifications to prevent assembly issues.
Selection Notes
Select this component when a vertical, surface-mount PCI Express GEN 3 interface is required. Consider the 1.00mm pitch and 64-position count for board space constraints. Verify that the 1.1A current rating and -55°C to 85°C operating temperature range align with system thermal and electrical requirements.
Part Context
This part belongs to the Amphenol ICC (FCI) portfolio of high-reliability interconnect solutions. FCI technology is widely recognized for supporting information and communication markets through advanced signal integrity and power management capabilities. The series emphasizes robust performance in demanding electronic environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference mechanical dimensions and electrical ratings carefully if considering alternative vendors. Consult official Amphenol FCI resources for potential obsolescence notices or recommended upgrades.
