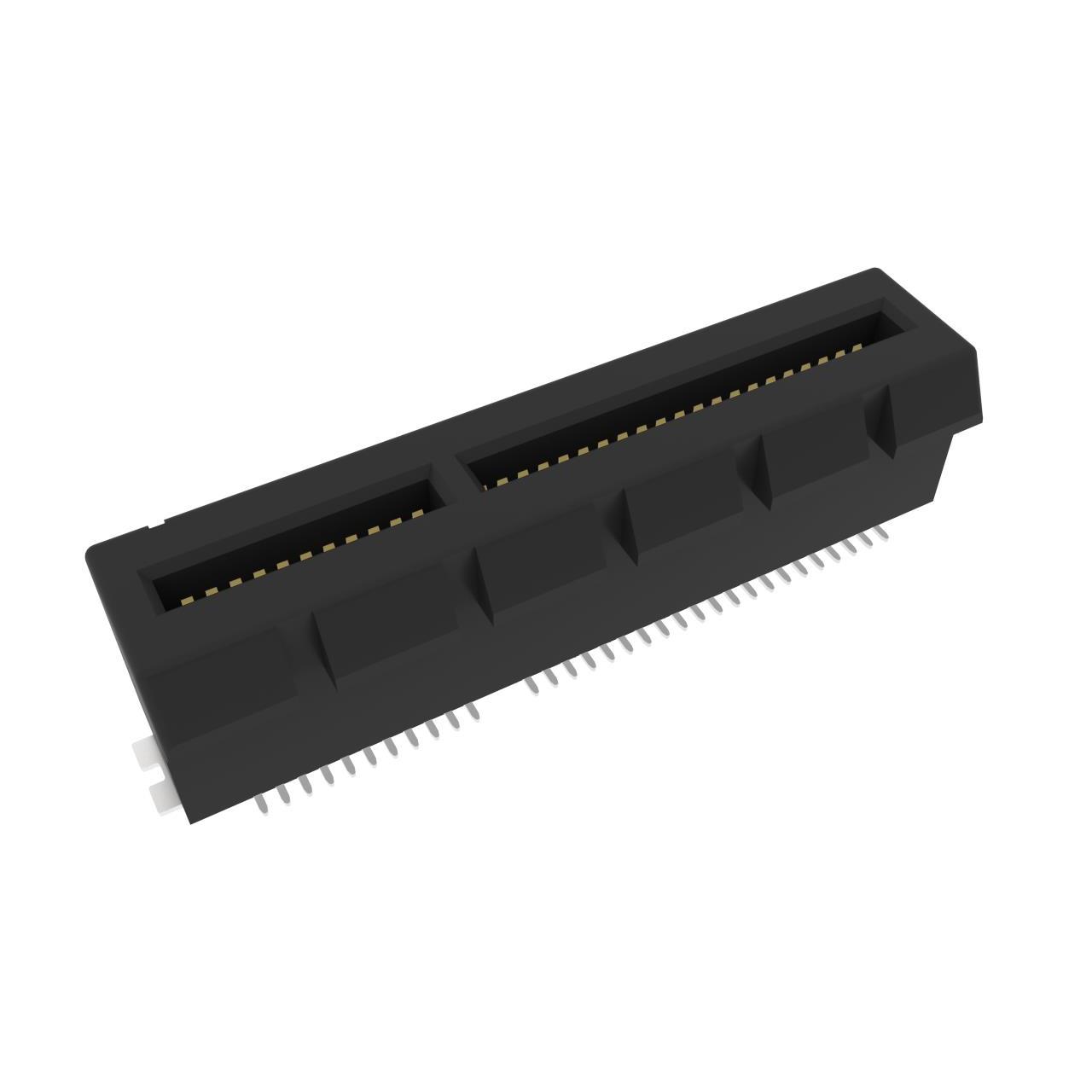

10061913-101RLF

Description：CONN PCI EXP FMALE 64POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:f9447e6ecd57 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PCI EXP FMALE 64POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：64
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Download product information

10061913-101RLF

Overview

The Amphenol ICC (FCI) 10061913-101RLF is a PCI Express card edge connector designed for surface mount applications. It features 64 positions with a 1mm pitch, supporting vertical orientation. The connector utilizes gold-plated copper alloy contacts and a nylon housing to ensure reliable signal integrity in high-speed data transmission environments.

Feature Summary

Vertical surface mount design for compact board integration
Gold-plated contacts for enhanced conductivity and corrosion resistance
Nylon housing material providing structural stability

Applications

Server motherboards
Workstation expansion slots
Industrial embedded systems

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin configuration and plating specifications. Ensure compatibility with the target PCB stack-up and mating card thickness requirements before finalizing procurement orders.

Selection Notes

Select this component for applications requiring high-density PCIe connectivity with vertical mounting constraints. Confirm that the 1mm pitch and 64-position count align with the system's bandwidth and slot length requirements.

Part Context

This part belongs to the Amphenol FCI PCIe card edge connector family, widely used in computing infrastructure. It serves as a critical interface between expansion cards and mainboards, facilitating high-speed data transfer in professional hardware environments.

Replacement Considerations

Cross-reference with other 64-position vertical PCIe connectors from the same series or compatible families. Verify mechanical dimensions and electrical characteristics match the original design intent.
