10061913-101TLF

Overview

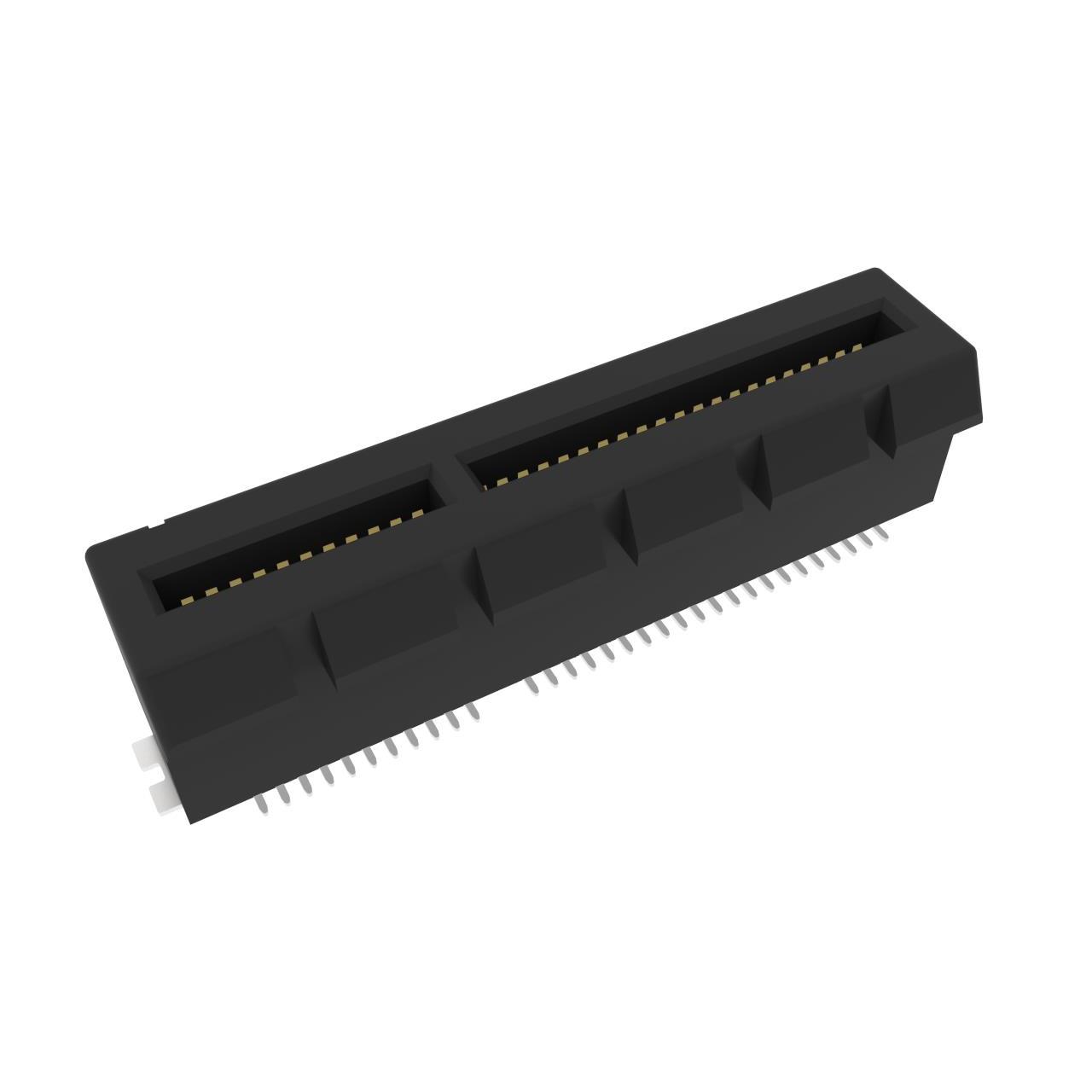

The Amphenol ICC (FCI) 10061913-101TLF is a PCI Express female connector designed for surface mount applications. It features 64 positions with a 0.039-inch pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This component utilizes a cantilever contact type and solder termination method, supporting vertical installation on printed circuit boards.

Feature Summary

• Designed for PCI Express card edge connections
• Utilizes gold-plated copper alloy contacts
• Supports vertical surface mount installation

Applications

• PCI Express card edge interconnects
• High-speed data transmission modules
• Computer peripheral expansion slots

Procurement Notes

Verify the specific suffix '101' against official Amphenol documentation to confirm pin count and pitch variations. Ensure compatibility with PCB thickness requirements and mating card edge specifications before procurement. Confirm RoHS compliance status through current manufacturer declarations.

Selection Notes

Select this component for applications requiring robust PCI Express connectivity with surface mount constraints. Evaluate the 64-position layout against board space limitations. Consider the cantilever contact design for ease of insertion and durability during repeated mating cycles in expansion slot environments.

Part Context

This part belongs to the Amphenol FCI I/O connector portfolio, specializing in high-performance signal integrity solutions. The series supports various interface standards including PCI Express, catering to industrial and commercial electronic markets requiring reliable board-to-card connections.

Replacement Considerations

Cross-reference with 10061913-100TLF for similar form factors but verify position counts differ. No direct public substitute part numbers are confirmed for this specific 64-position configuration.
