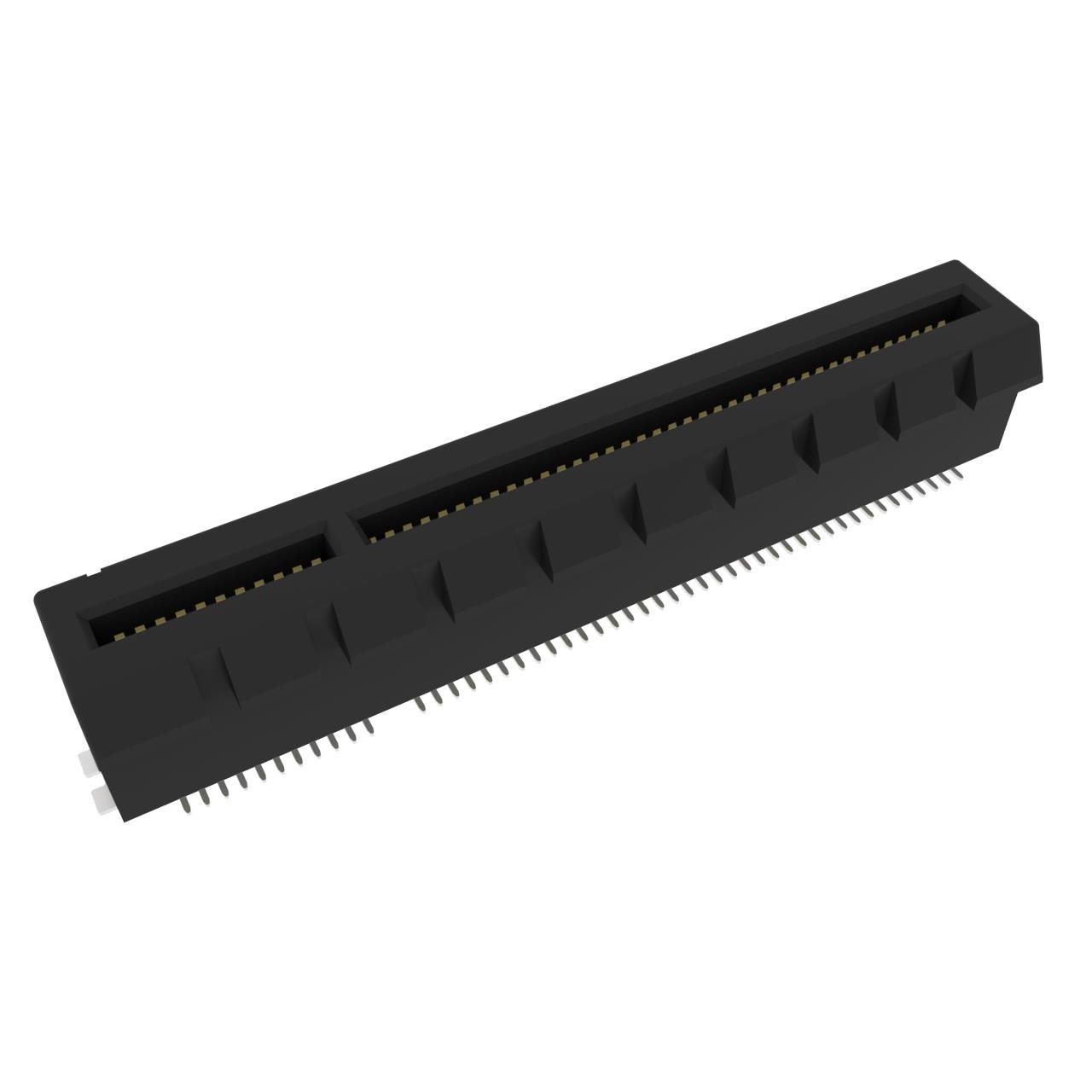

10076266-112TLF

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:cbbb4a24df76 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：98
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Locking Ramp, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Download product information

10076266-112TLF

Overview

The Amphenol ICC (FCI) 10076266-112TLF is a PCI Express Gen 3 Card Edge connector designed for storage and server applications. It features a vertical, surface mount configuration with post-free design. The connector supports x8 signal paths with 98 positions and a 1.00mm (0.039in) pitch.

Feature Summary

Supports PCI Express Gen 3 high-speed data transmission standards
Vertical surface mount installation for compact board integration
Post-free design eliminates need for separate mounting posts

Applications

Server motherboards
Storage expansion cards
High-performance computing systems

Procurement Notes

Verify the specific suffix 'TLF' against official Amphenol documentation to confirm tin plating and lead-free compliance. Ensure the x8 pin count matches system requirements rather than assuming x16 variants. Confirm RoHS status through manufacturer datasheets prior to procurement.

Selection Notes

Select this component when a vertical, post-free PCIe Gen 3 interface is required for x8 configurations. Compare against x16 variants like 10076266-113FLF if higher bandwidth is needed. Verify mechanical height constraints and thermal management needs for server environments.

Part Context

This part belongs to the Amphenol FCI PCI Express card edge connector family. It complements other variants in the series offering different pin counts and orientations. The product line targets high-reliability interconnect solutions for enterprise infrastructure.

Replacement Considerations

Direct substitutes include 10076266-112ALF or 10076266-112RLF within the same series. Verify identical pitch, position count, and mounting style before substitution.
