10085429-41223TLF

Overview

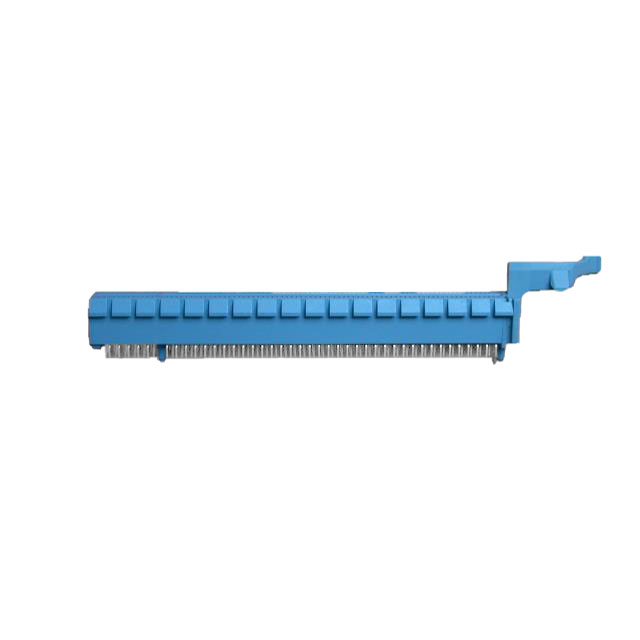

The Amphenol ICC (FCI) 10085429-41223TLF is a PCI Express Gen 3 Card Edge connector designed for storage and server applications. It features an integrated R-Type configuration with vertical, through-hole mounting. The connector supports x16 configurations with 164 positions at a 1.00mm pitch. Key electrical specifications include a current rating of 1.1 A and a voltage rating of 300 VAC. Insulation resistance is rated at 1 GOhms. The component operates within a temperature range of -55°C to +85°C and utilizes gold-plated copper alloy contacts housed in thermoplastic.

Feature Summary

• Integrated R-Type design optimized for signal integrity in high-speed data transmission environments
• Vertical through-hole termination ensures secure board attachment for server infrastructure
• Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance

Applications

• PCI Express Gen 3 storage systems
• Server infrastructure components
• High-density card edge interconnects

Procurement Notes

Verify the specific lifecycle status as sources indicate this part may be discontinued or restricted. Confirm RoHS compliance details directly with the manufacturer before integration. Ensure compatibility with existing PCB layouts regarding the 1.00mm pitch and 164-position requirement. Check for regional sales restrictions that may affect availability. Validate that the vertical mounting style aligns with the mechanical assembly constraints of the target enclosure.

Selection Notes

Select this connector when a high-pin-count, low-profile solution is required for PCIe Gen 3 applications. The integrated R-type feature simplifies mating alignment in dense server racks. Consider the thermal operating limits of -55°C to +85°C against the environmental conditions of the deployment site. Verify that the 1.1A current rating per contact meets the power distribution needs of the attached card. Ensure the through-hole soldering process is compatible with the manufacturing line capabilities.

Part Context

This component belongs to the Amphenol FCI PCI Express connector family, which provides standardized interfaces for high-speed computing. The 10085429 series specifically targets storage and server markets requiring robust connectivity. As part of the broader Amphenol ICC portfolio, it leverages established signal integrity technologies. The model represents a specialized variant within the card edge connector category, focusing on x16 bandwidth requirements.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing with other models in the 10085429 series, such as 10085429-11113TLF, may reveal similar form factors but requires verification of pinout and electrical compatibility. No direct equivalent replacements are listed in the source material.
