Product Detailed Parameters
- Description：LINE FILTER 100A CHASSIS MOUNT
- Series：ADT
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (3/8-16)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

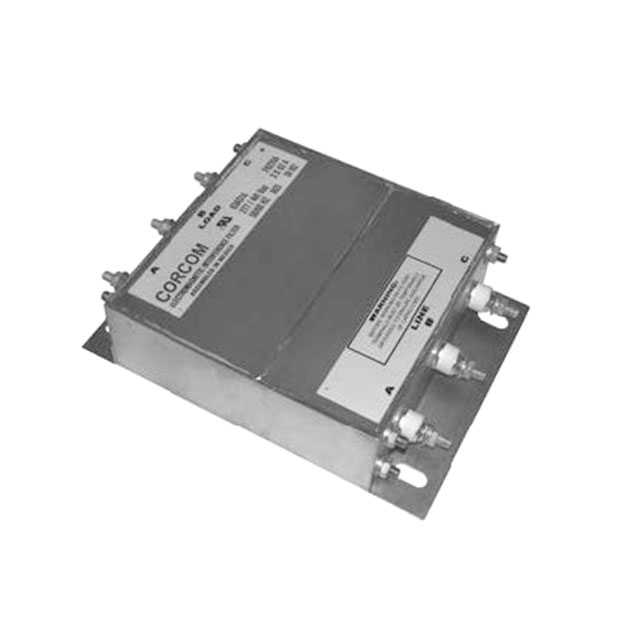

The TE Connectivity Corcom Filters 100ADT6 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 100 A and operates at frequencies of 50/60 Hz. The unit features a single-stage configuration with a voltage rating of 277 VAC phase-to-ground/neutral, suitable for high-current industrial motor applications requiring significant insertion loss.
Feature Summary
- Provides high insertion loss specifically engineered for Delta three-phase configurations
- Supports high current loads up to 100 A for industrial motor drives
- Features a robust chassis mount design for secure installation
Applications
- Industrial motor drive systems
- Three-phase power distribution networks
- High-current electromagnetic interference suppression
Procurement Notes
Verify the specific part number suffix against official TE Connectivity documentation to ensure correct voltage and current ratings. Confirm RoHS compliance status and certification requirements such as UL or CSA prior to procurement. Cross-reference datasheet specifications with system electrical parameters to guarantee compatibility.
Selection Notes
Select this component for applications requiring three-phase Delta filtering with high current capacity. Ensure the operating environment accommodates the specified voltage ratings and thermal conditions. Validate that the chassis mounting style aligns with the enclosure design constraints and available space for installation.
Part Context
This component belongs to the TE Connectivity Corcom Filters series, specializing in EMI/RFI suppression solutions. The product line focuses on providing reliable noise reduction for sensitive electronic equipment and industrial machinery, ensuring compliance with electromagnetic compatibility standards across various global markets.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Ensure any replacement maintains identical three-phase Delta topology, current handling capabilities, and mounting dimensions to preserve system integrity.
