100BCF6R

Overview

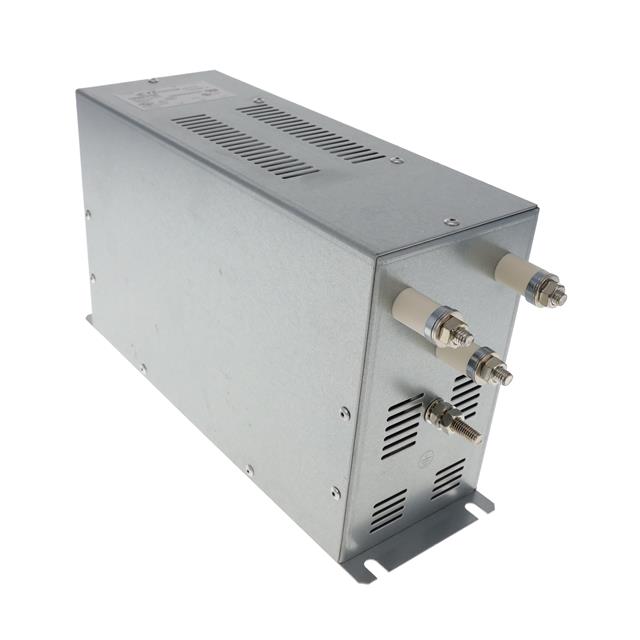

The TE Connectivity Corcom Filters 100BCF6R is a three-phase Delta EMC/EMI line filter designed for chassis mounting. It supports a current rating of 100 A at 50/60 Hz with a voltage rating of 277 VAC. The unit features a two-stage configuration and utilizes threaded post connections with M5 thread size. Its physical dimensions include a flange mount style, suitable for industrial power conditioning applications requiring robust noise suppression.

Feature Summary

• Provides effective common and differential mode performance below 100 kHz
• Features a compact, lightweight book-form design for efficient space utilization
• Utilizes threaded post terminal connections for secure electrical interfacing

Applications

• Industrial power conditioning systems
• Three-phase equipment requiring EMI/RFI suppression
• Chassis-mounted power distribution units

Procurement Notes

Verify the specific thread size and flange dimensions against the mechanical drawing before integration. Confirm that the operating environment temperature remains within the specified limits to ensure long-term reliability. Check for any recent product change notices regarding material or sourcing updates.

Selection Notes

Select this component when a three-phase Delta configuration is required for high-current applications up to 100 A. Ensure the mounting surface accommodates the flange style and that the available space fits the book-form dimensions. Verify compatibility with the system's voltage rating of 277 VAC.

Part Context

This part belongs to the Corcom BCF series, which specializes in three-phase Delta RFI filters. The series is characterized by its ability to handle significant current loads while maintaining low impedance characteristics for noise attenuation. It serves as a critical component in maintaining power quality in sensitive industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
