Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

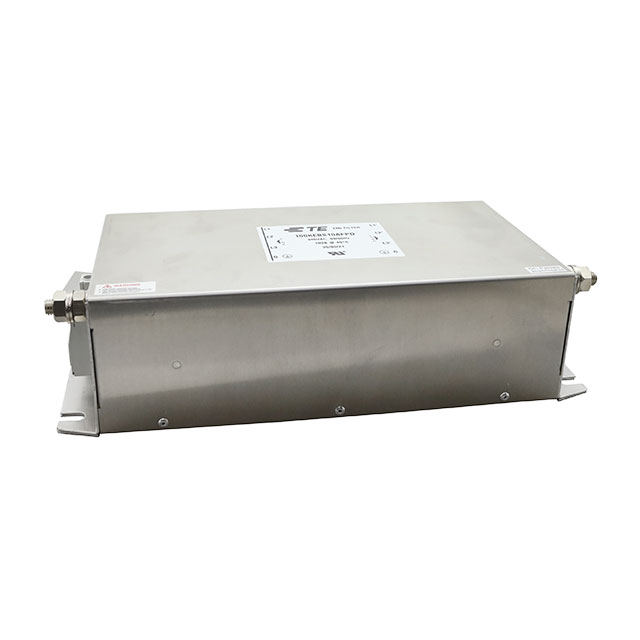

The 100KEBS10AFPD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. Designed for chassis mounting, it supports a voltage rating of 440 VAC and a current capacity of 100 A. The unit operates at frequencies of 50 Hz and 60 Hz with a single-stage configuration. Physical dimensions are 300 mm in length, 160 mm in width, and 92 mm in height. It utilizes terminal block connections and holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase delta systems
- Engineered for direct chassis mounting applications
- Features terminal block connection style for secure wiring
Applications
- Industrial machinery power conditioning
- Three-phase electrical distribution panels
- Equipment requiring EMC compliance in delta configurations
Procurement Notes
Verify component status as the manufacturer has scheduled this part for obsolescence. Confirm availability through authorized distributors before finalizing design specifications. Ensure replacement strategies are in place due to discontinuation risks. Validate technical compatibility with existing system requirements prior to procurement.
Selection Notes
Select this model for three-phase delta systems requiring 100 A filtering capacity. Verify that the chassis mounting style and terminal block interface match the enclosure design. Ensure the 440 VAC rating aligns with the operational voltage. Consider the physical dimensions of 300x160x92 mm for spatial constraints within the assembly.
Part Context
This component belongs to the KEB series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 100KEBS10AFPD represents a specific high-current variant designed for robust industrial environments requiring effective noise reduction.
Replacement Considerations
Consult TE Connectivity for current alternative part numbers within the KEB series or updated product lines. Verify that any substitute maintains the same 100 A rating, 440 VAC voltage, and three-phase delta configuration. Ensure mechanical fit and terminal type compatibility.
