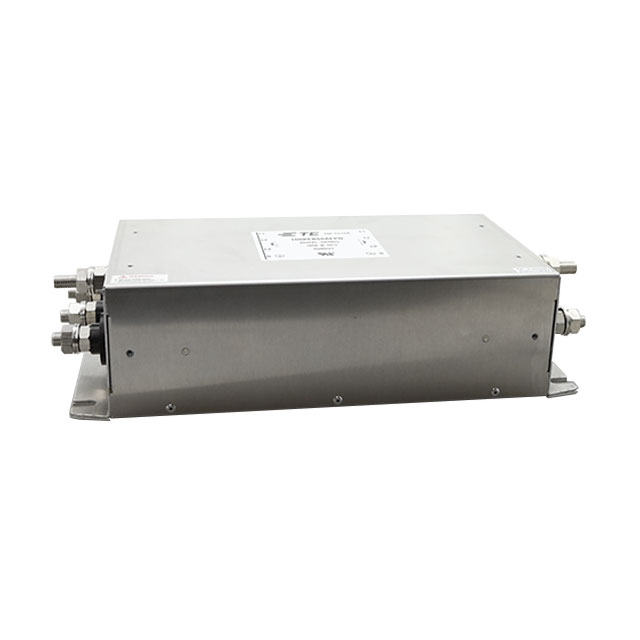

100KEBS6BFPD

$398.83

Description：LINE FLTR 520VAC 100A CHASS MNT
Series：KEB
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:e93c2869ed98 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 520VAC 100A CHASS MNT
Series：KEB
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：100 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M10)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

100KEBS6BFPD

Overview

The 100KEBS6BFPD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount configuration with screw termination and is rated for 100 A current at 520 VAC. The unit operates at 50 Hz or 60 Hz frequencies and includes a nut wye connection style. Physical dimensions are approximately 350 mm in length, 160 mm in width, and 92 mm in height. It complies with UL and CSA standards.

Feature Summary

Three-phase EMI/EMC filtering capability
Chassis mount installation with screw termination
Nut wye connection style

Applications

Industrial automation systems
HVAC equipment
Rectifier applications

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to confirm specifications. Check for obsolescence status as some Corcom filters may be discontinued. Ensure compatibility with existing chassis mounting holes and terminal configurations before procurement.

Selection Notes

Select this component for high-current three-phase applications requiring robust EMI suppression. Confirm that the 100 A rating and 520 VAC voltage align with system requirements. Verify physical space constraints against the specified dimensions.

Part Context

This component belongs to the Corcom KES series of power line filters. It is designed for industrial environments where significant electromagnetic interference needs to be mitigated in three-phase power distribution networks.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Generic cross-references may not match the specific nut wye configuration or current ratings required for this application.
