100KEHD10ABSD

$411.31

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:21c6ec8e9dfb Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：100 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

100KEHD10ABSD

Overview

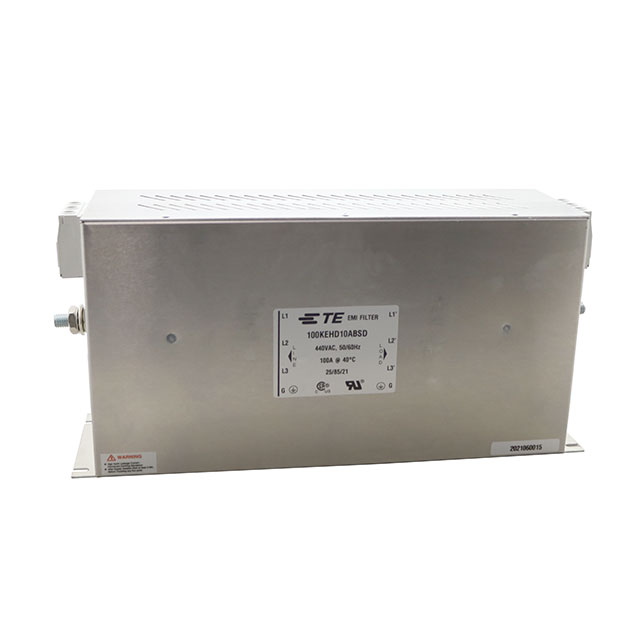

The 100KEHD10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It supports a rated current of 100 A and a voltage rating of 440 VAC at 50/60 Hz. The unit features a two-stage filtering configuration with terminal block connections. Designed for chassis mounting, it measures 320 mm in length, 70 mm in width, and 110 mm in height. The filter operates within a temperature range of -25°C to +85°C and has a leakage current of 15 mA.

Feature Summary

Provides dual-stage attenuation for electromagnetic interference suppression in three-phase circuits
Utilizes terminal block interface for secure electrical connections
Engineered for robust chassis mounting applications

Applications

Industrial machinery power conditioning
Three-phase equipment noise reduction
Electrical panel EMC compliance

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to discontinued status. Confirm datasheet revisions match installation requirements. Check for RoHS compliance documentation specific to the manufacturing batch. Ensure replacement parts meet identical electrical ratings and physical dimensions for system compatibility.

Selection Notes

Select this model for high-current three-phase applications requiring significant noise attenuation. Verify that the 100 A rating aligns with load requirements. Ensure chassis space accommodates the specified dimensions. Confirm terminal block termination suits existing wiring infrastructure. Validate operating temperature range against environmental conditions.

Part Context

This component belongs to the KEH series of power line filters from TE Connectivity Corcom. The series focuses on three-phase EMI/EMC solutions for industrial environments. The 100KEHD10ABSD variant specifically addresses high-current needs with dual-stage filtering capabilities.
