100KEHD10AFPD

$396.62

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KEH
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:b831cfd15e17 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KEH
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：100 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

100KEHD10AFPD

Overview

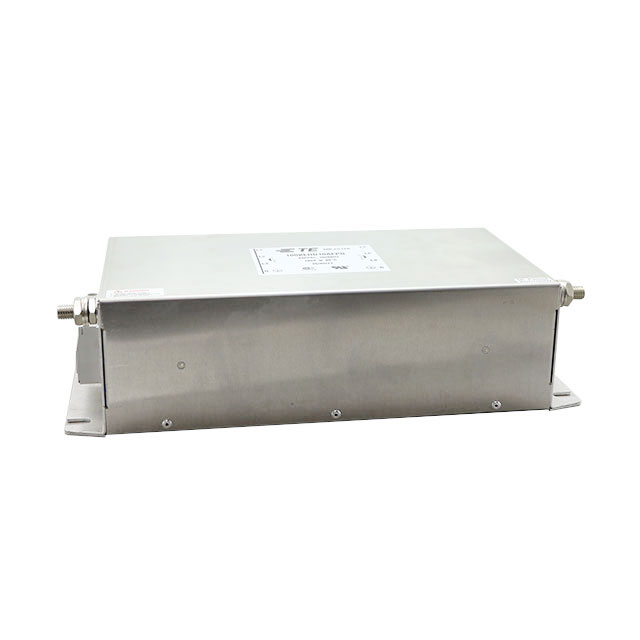

The TE Connectivity Corcom 100KEHD10AFPD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a rated voltage of 440 VAC and a current rating of 100 A, operating at frequencies of 50 Hz and 60 Hz. The unit utilizes chassis mount installation with screw termination and exhibits a leakage current of 20 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It complies with UL and CSA standards and functions within an operating temperature range of -25 C to +85 C.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Supports chassis mounting configurations for secure integration
Ensures compliance with UL and CSA safety certifications

Applications

Industrial machinery power conditioning
Three-phase equipment noise reduction
Electrical panel EMC compliance

Procurement Notes

Verify the specific datasheet version for the 100KEHD10AFPD to confirm current availability status and any recent design changes. Ensure that the required screw termination type matches the existing infrastructure connections. Cross-reference the physical dimensions against the available chassis space to guarantee proper fitment before finalizing procurement decisions.

Selection Notes

Select this component when a three-phase filter with a 100 A continuous current rating is required. The 440 VAC rating suits standard industrial distribution networks. Consider the chassis mount style and screw terminals for fixed installations where DIN rail options are unsuitable. Verify that the 20 mA leakage current aligns with sensitive downstream equipment requirements.

Part Context

This model belongs to the KEH series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 100KEHD10AFPD represents a mid-range capacity option within this lineup, balancing performance with physical footprint constraints typical of industrial control panels.
