Product Detailed Parameters
- Description：LINE FLTR 520VAC 100A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

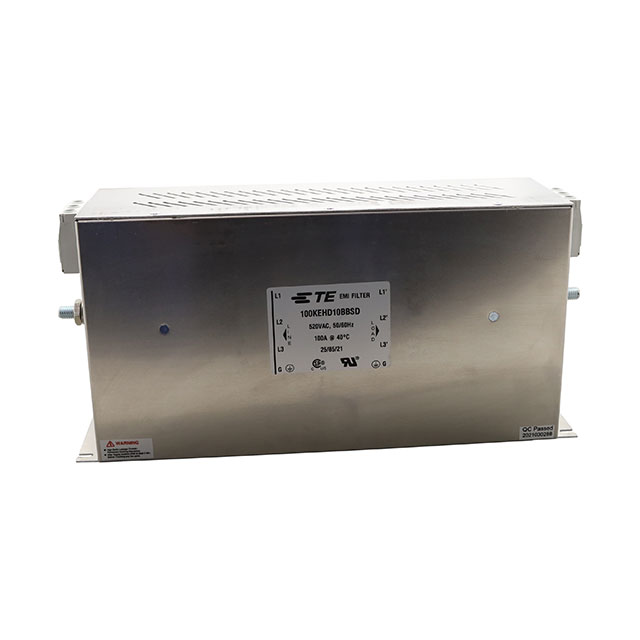

The TE Connectivity Corcom Filters model 100KEHD10BBSD is a three-phase power line filter module designed for industrial applications. It features a Delta configuration with two stages of filtering and a split-phase design. The unit supports a rated current of 100A at an AC voltage of 520VAC. It utilizes chassis mount installation and quick connect termination styles to facilitate integration into high-power electrical systems requiring EMI/RFI suppression.
Feature Summary
- Three-phase EMI/RFI filtering capability
- Delta configuration with split-phase design
- Two-stage filtering architecture
Applications
- Industrial machinery power distribution
- High-current motor drive systems
- Commercial building infrastructure power supplies
Procurement Notes
Verify the specific voltage rating of 520VAC against your system requirements before procurement. Confirm that the chassis mount style and quick connect terminations match your panel layout and wiring harness specifications. Ensure the three-phase Delta configuration aligns with your input power source to prevent operational mismatches or installation errors.
Selection Notes
Select this component when a three-phase solution is required for currents up to 100A. The 520VAC rating suits specific industrial voltage standards. Consider the physical dimensions for chassis mounting and verify that the quick connect terminals are compatible with your available wire gauges and connector tools for proper assembly.
Part Context
This part belongs to the Corcom KEH series, which provides robust EMI/RFI filtration for demanding environments. The manufacturer specializes in power line filters that meet stringent international safety and emissions standards. This specific model addresses the need for high-capacity noise suppression in complex three-phase power architectures.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing systems if considering alternative manufacturers or different series within the same product family.
