Product Detailed Parameters
- Description：LINE FLTR 520VAC 100A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

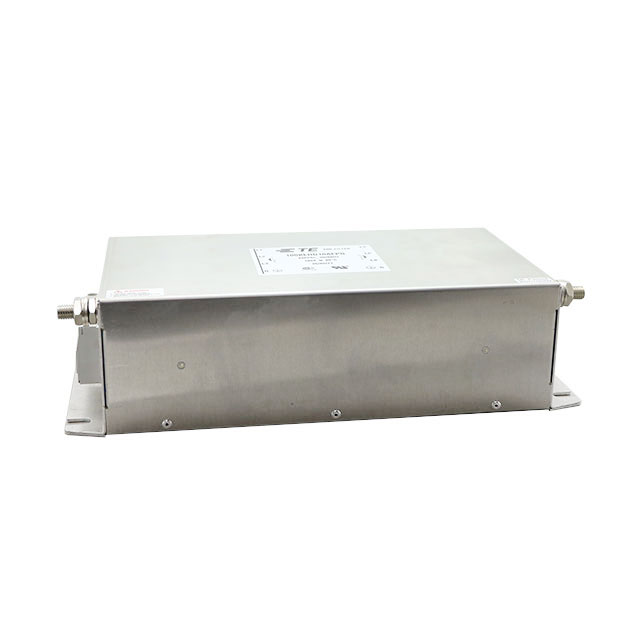

The TE Connectivity Corcom Filters 100KEHD10BFPD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a chassis mount configuration with screw terminal block termination. The component operates at a voltage rating of 520 VAC and supports a current rating of 100 A. It functions at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 20 mA. The unit measures 350 mm in length, 160 mm in width, and 92 mm in height, operating within a temperature range of -25°C to +85°C.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Designed for robust industrial power conditioning environments
- Utilizes chassis mounting for secure mechanical installation
Applications
- Industrial power distribution systems
- Three-phase motor drive protection
- Heavy machinery power input stages
Procurement Notes
Verify the specific part number against official TE Connectivity documentation before procurement. Confirm that the 100KEHD10BFPD designation matches the required electrical specifications and physical dimensions for your design. Ensure compliance with relevant safety certifications such as UL and CSA are valid for your region. Check for any recent product change notices or obsolescence warnings directly from the manufacturer.
Selection Notes
Select this component when a high-current three-phase filter is required for 520 VAC systems. The 100 A rating and chassis mount style dictate the enclosure space and thermal management strategy. Verify that the 20 mA leakage current meets system safety grounding requirements. Compare physical dimensions against available panel cutouts to ensure proper fitment during integration.
Part Context
This model belongs to the KEH series of power line filters from TE Connectivity Corcom Filters. The series is engineered for demanding industrial environments requiring reliable noise suppression. The KEH series typically offers high current handling capabilities suitable for heavy-duty equipment. This specific variant represents a standard configuration within that industrial-grade lineup.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific performance requirements.
